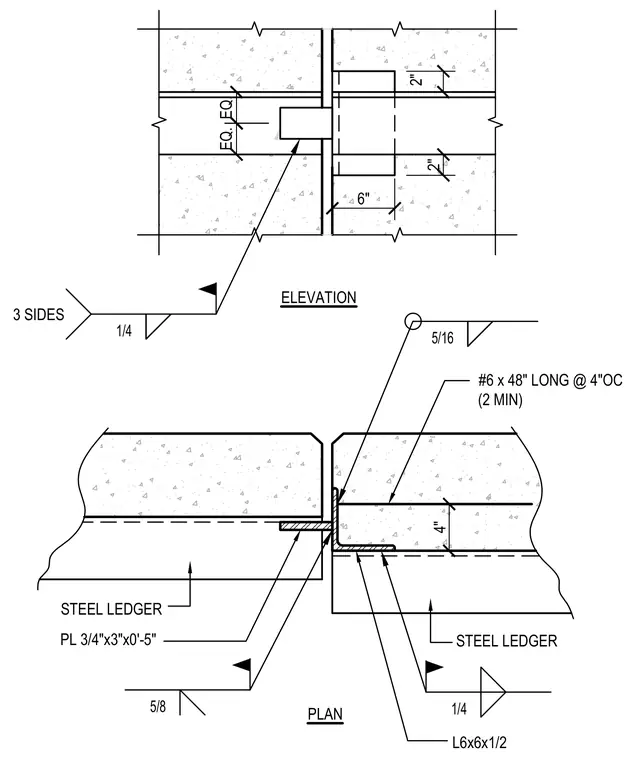

An L6x6x1/2 angle steel ledger is anchored into concrete panels with a minimum of two number 6 reinforcing bars spaced at 4 inches on center. A 3/4-inch by 3-inch by 0'-5" steel ledger plate spans the joint and is welded with a five-eighths-inch weld. Additional connections utilize a quarter-inch fillet weld on three sides. Dimensions include 2-inch, 4-inch, and 6-inch clearances across the joint assembly.
4" 6" 2" EQ. EQ. ELEVATION PLAN 1/4 3 SIDES 5/16 #6 x 48" LONG @ 4"OC (2 MIN) STEEL LEDGER STEEL LEDGER PL 3/4"x3"x0'-5" L6x6x1/2 5/8 1/4 2"
