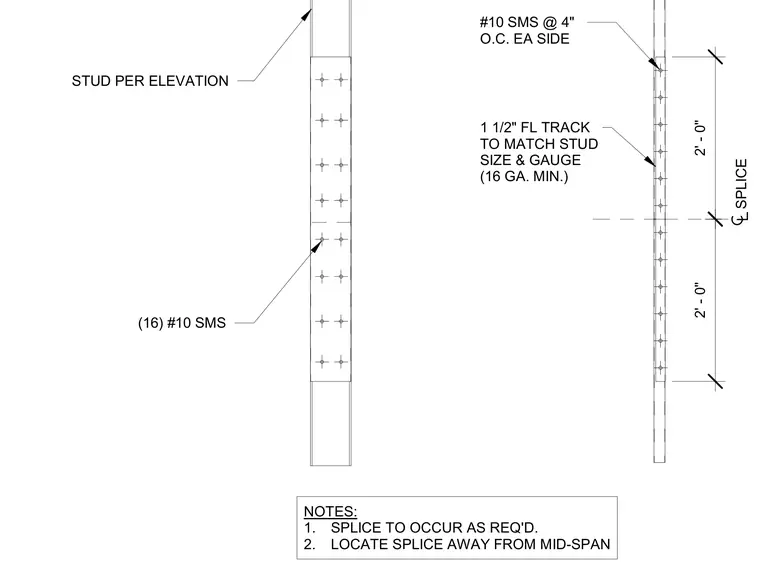

The vertical stud splice consists of an internal one-and-a-half-inch flange track sleeve matching the stud size and gauge, with a minimum thickness of sixteen gauge. The connection is fastened using sixteen number-ten sheet metal screws spaced at four inches on center on each side of the splice. The splice is positioned away from mid-span as required.
2' - 0" 2' - 0" SPLICE #10 SMS @ 4" O.C. EA SIDE 1 1/2" FL TRACK TO MATCH STUD SIZE & GAUGE (16 GA. MIN.) STUD PER ELEVATION (16) #10 SMS NOTES: 1. SPLICE TO OCCUR AS REQ'D. 2. LOCATE SPLICE AWAY FROM MID-SPAN
