Two hollow structural section tie beams align with a one-and-a-half-inch clear gap between them, tied to a structural steel post beyond. A grade fifty splice plate measuring five-eighths by fourteen by thirty inches bridges the connection. Four Holo-Bolt LHBM twenty hex expansion anchors secure the plate through vertical and horizontal slots at the splice plate and hollow structural section members.

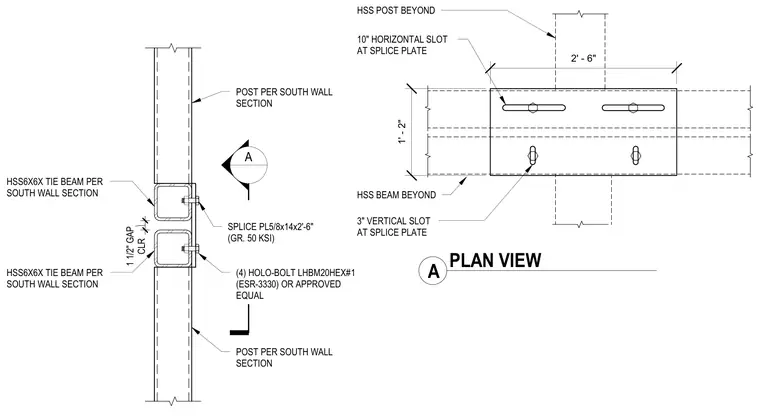

A 1' - 2" 2' - 6" 3" VERTICAL SLOT AT SPLICE PLATE HSS BEAM BEYOND 10" HORIZONTAL SLOT AT SPLICE PLATE HSS POST BEYOND A PLAN VIEW CLR 1 1/2" GAP HSS6X6X TIE BEAM PER SOUTH WALL SECTION HSS6X6X TIE BEAM PER SOUTH WALL SECTION POST PER SOUTH WALL SECTION POST PER SOUTH WALL SECTION SPLICE PL5/8x14x2'-6" (GR. 50 KSI) (4) HOLO-BOLT LHBM20HEX#1 (ESR-3330) OR APPROVED EQUAL
