An existing W10 steel beam frames into existing channels with shear tabs per typical details. Two three-quarter-inch epoxy bolts are core-drilled through the existing channels six inches each side of the W10 beam. A W10 beam sized per plan features half-inch welded studs spaced at twelve inches on center supporting a concrete slab per plan. A typical mechanical, electrical, and plumbing opening is provided for a curb.

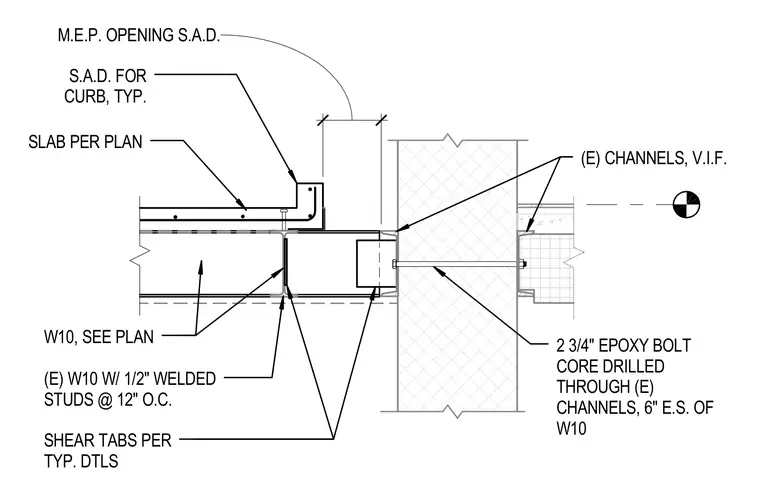

W10, SEE PLAN (E) W10 W/ 1/2" WELDED STUDS @ 12" O.C. SLAB PER PLAN (E) CHANNELS, V.I.F. M.E.P. OPENING S.A.D. SHEAR TABS PER TYP. DTLS 2 3/4" EPOXY BOLT CORE DRILLED THROUGH (E) CHANNELS, 6" E.S. OF W10 S.A.D. FOR CURB, TYP.
