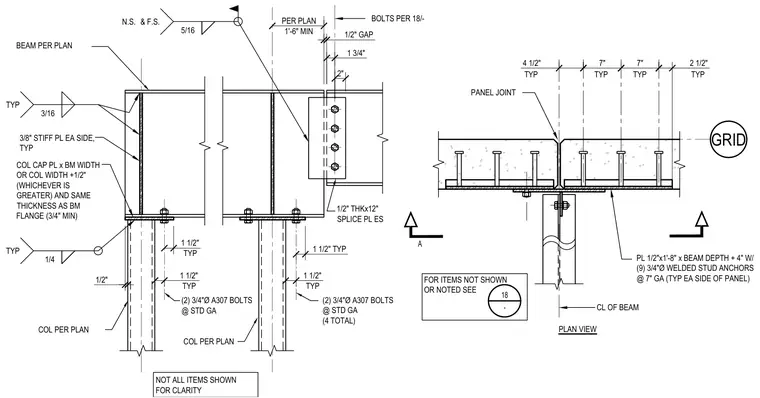

A steel beam frames into the top of a column with a column cap plate and 3/8-inch stiffener plates on each side welded with typical 3/16-inch and 1/4-inch welds. A 1/2-inch thick by 12-inch splice plate connects across the beam joint with a total of four 3/4-inch diameter A307 bolts at standard gauge. The plan view shows a 1/2-inch plate measuring 1'-8" by beam depth plus 4 inches with nine 3/4-inch diameter welded stud anchors at 7-inch gauge on each side of the panel joint.
GRID 4 1/2" 7" 7" 2 1/2" PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) FOR ITEMS NOT SHOWN OR NOTED SEE 18 - TYP TYP TYP TYP PLAN VIEW A PER PLAN 1'-6" MIN 1 1/2" TYP 1/2" 1 1/2" TYP 1/2" GAP 1 1/2" TYP 1 1/2" TYP 3/8" STIFF PL EA SIDE, TYP COL CAP PL x BM WIDTH OR COL WIDTH +1/2" (WHICHEVER IS GREATER) AND SAME THICKNESS AS BM FLANGE (3/4" MIN) NOT ALL ITEMS SHOWN FOR CLARITY (2) 3/4"Ø A307 BOLTS @ STD GA (2) 3/4"Ø A307 BOLTS @ STD GA (4 TOTAL) 1/2" THKx12" SPLICE PL ES COL PER PLAN COL PER PLAN BEAM PER PLAN 1 3/4" 2" 3/16 TYP 5/16 N.S. & F.S. 1/4 TYP BOLTS PER 18/-
