Structural · S-554CQ

Typical Structural Anchor Rod Assembly

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection Bolted Connection Embed Plate

About this detail

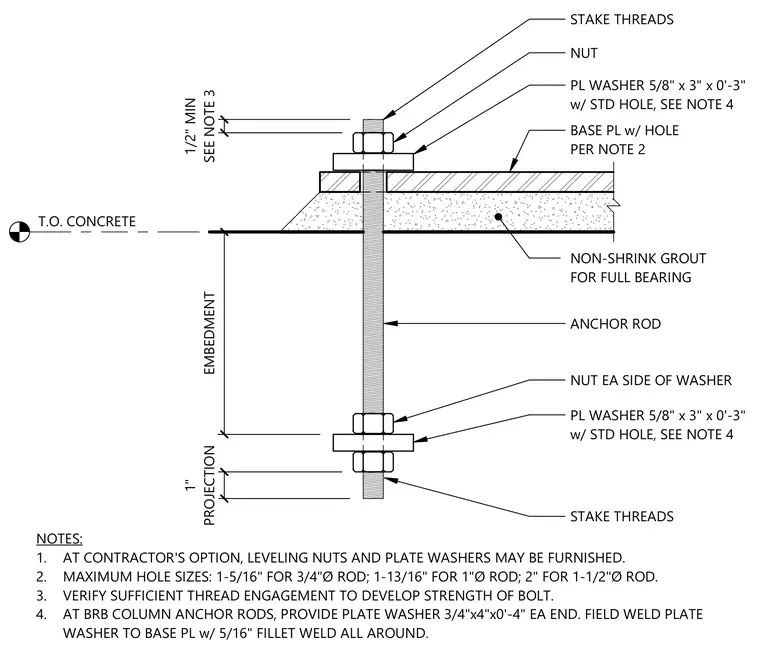

An anchor rod is embedded into concrete with a specified embedment depth and a one-inch projection below the lower anchorage. The lower end features a plate washer secured by a nut on each side, with threads staked for security. Above, a base plate rests over non-shrink grout applied for full bearing beneath the plate. The top of the rod extends through a standard hole in the base plate, secured with a nut, a plate washer, and a minimum half-inch projection with staked threads to verify sufficient thread engagement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
