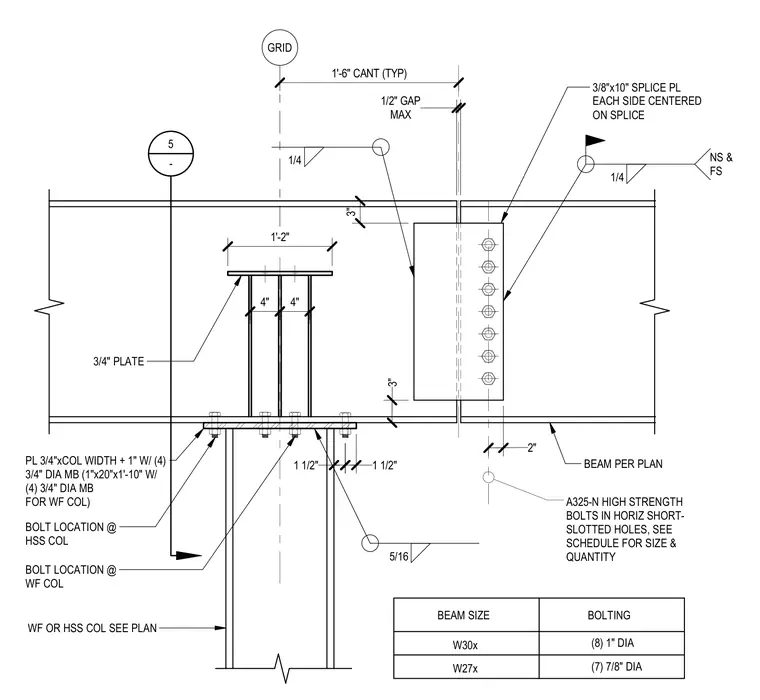

A structural steel beam-to-column connection supporting a beam sized per plan over a wide-flange or hollow structural section column. A three-quarter-inch thick plate is welded to the top of the column with five-sixteenth-inch fillet welds, secured with four three-quarter-inch diameter machine bolts located for either an HSS or WF column per plan. A beam splice is detailed with three-eighth-inch by ten-inch splice plates on each side centered on the joint, fastened with A325-N high-strength bolts in horizontal short-slotted holes. Fillet welds of one-quarter-inch size are applied near side and far side to complete the connection.
1/4 NS & FS 1'-2" GRID 2" 4" 4" 3/8"x10" SPLICE PL EACH SIDE CENTERED ON SPLICE BEAM PER PLAN A325-N HIGH STRENGTH BOLTS IN HORIZ SHORT- SLOTTED HOLES, SEE SCHEDULE FOR SIZE & QUANTITY 3/4" PLATE PL 3/4"xCOL WIDTH + 1" W/ (4) 3/4" DIA MB (1"x20"x1'-10" W/ (4) 3/4" DIA MB FOR WF COL) BOLT LOCATION @ HSS COL BOLT LOCATION @ WF COL WF OR HSS COL SEE PLAN 1 1/2" 1 1/2" 3" 5/16 1'-6" CANT (TYP) MAX 1/2" GAP 3" 1/4 5 - BEAM SIZE BOLTING W27x (7) 7/8" DIA W30x (8) 1" DIA
