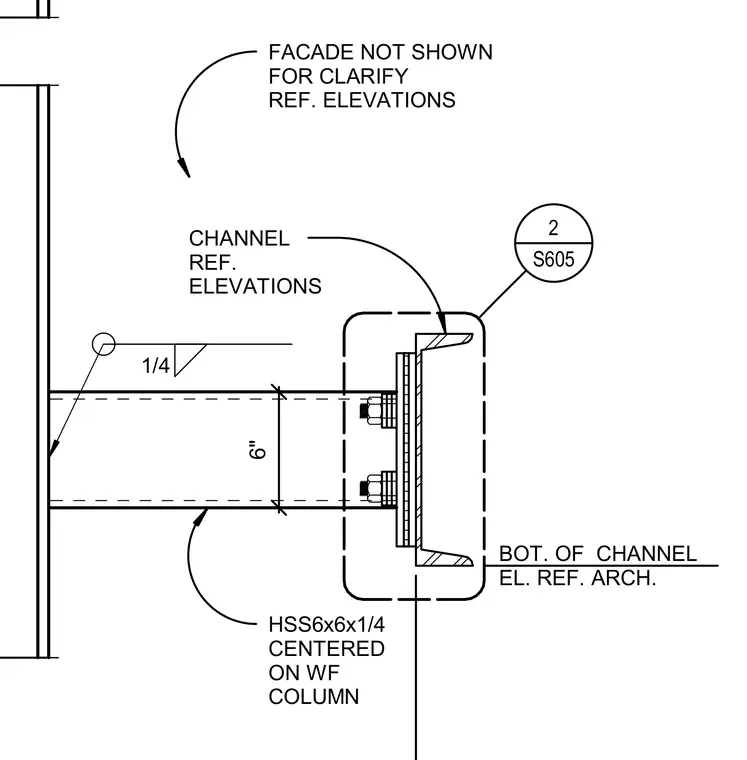

An HSS6x6x1/4 hollow structural section is centered on a wide flange steel column. The HSS member connects to the column using a plate secured with bolts and a channel section. A one-quarter-inch fillet weld is specified at the structural connection. Elevations and facade elements are referenced per architectural drawings.
CHANNEL REF. ELEVATIONS HSS6x6x1/4 CENTERED ON WF COLUMN 1/4 6" S605 2 BOT. OF CHANNEL EL. REF. ARCH. FACADE NOT SHOWN FOR CLARIFY REF. ELEVATIONS
