Structural · S-54HAV

Rail Support Base Connection to Concrete Slab

Materials

Concrete Steel

Elements

Walls Floors / Slabs Anchors / Embeds Connections / Plates

Connections

HSS Connection Embed Plate

About this detail

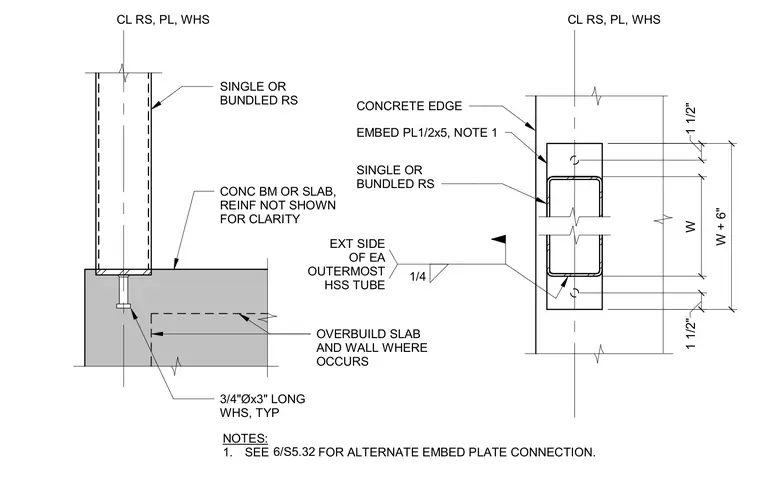

A rail support base connection anchors to a concrete beam or slab. The hollow structural section rail support secures to a half-inch by five-inch embed plate with a quarter-inch fillet weld along the exterior side of each outermost tube. Three-quarter-inch diameter by three-inch long welded headed studs anchor the embed plate into the concrete. An overbuild is provided at the slab and wall where required, with reinforcing omitted for clarity. Note 1 directs the builder to sheet 6/S5.32 for an alternate embed plate connection.
