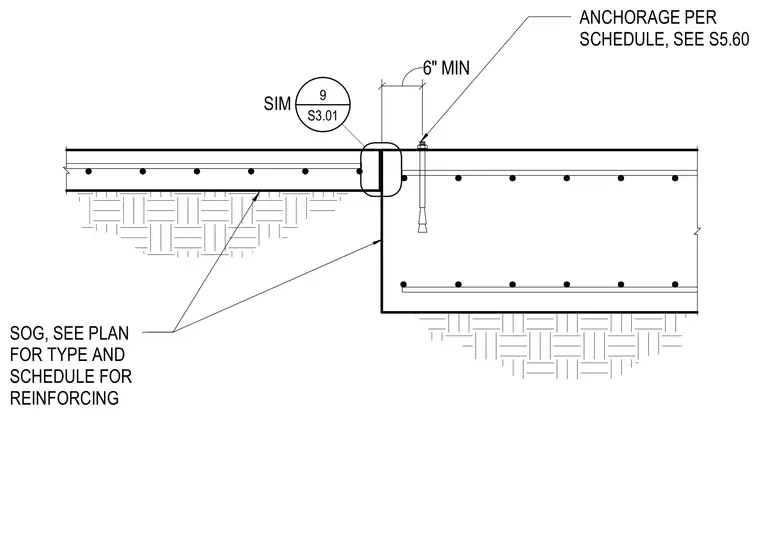

A thickened concrete equipment pad sits adjacent to a standard slab-on-grade. The slab features a minimum thickness with reinforcing steel sized per structural schedules and plans. Cast-in-place anchor bolts are positioned within the thickened pad according to equipment anchorage schedules. Subgrade preparation supports both the standard slab and the thickened equipment pad.
ANCHORAGE PER SCHEDULE, SEE S5.60 6" MIN SOG, SEE PLAN FOR TYPE AND SCHEDULE FOR REINFORCING S3.01 9 SIM
