Spread Footing

Materials

Elements

Anchors / Embeds Columns Connections / Plates Expansion / Control Joints Floors / Slabs Foundations / Footings Reinforcing

Connections

Base Plate / Anchorage

About this detail

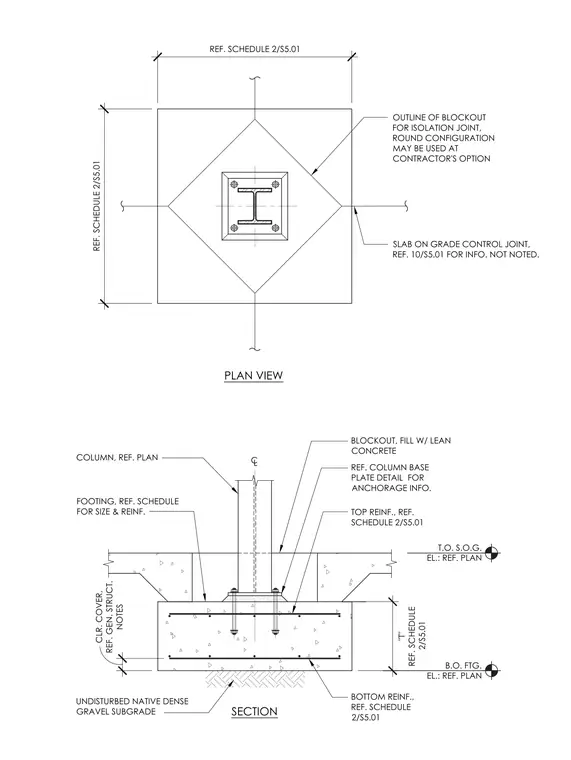

A structural steel column bears on a reinforced concrete spread footing sitting atop an undisturbed native dense gravel subgrade. The footing contains top and bottom reinforcing steel with specified concrete cover, detailed in the structural schedule. A blockout around the base plate is filled with lean concrete and integrated with the slab on grade, which features control joints and an isolation joint with an optional round configuration. Anchor bolts secure the column base plate to the footing.
