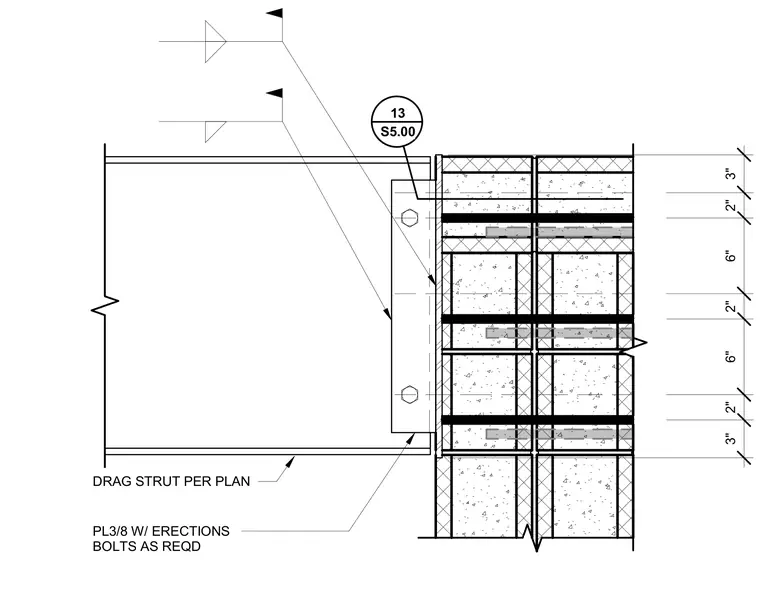

A structural steel drag strut connects to a concrete masonry unit wall using a 3/8-inch thick steel plate with erection bolts as required. The drag strut size is specified per plan and bears against the masonry wall. Alignment and spacing of the connection are detailed with specific vertical dimensions.
3" 2" 6" 2" 6" 2" 3" DRAG STRUT PER PLAN PL3/8 W/ ERECTIONS BOLTS AS REQD 13 S5.00
