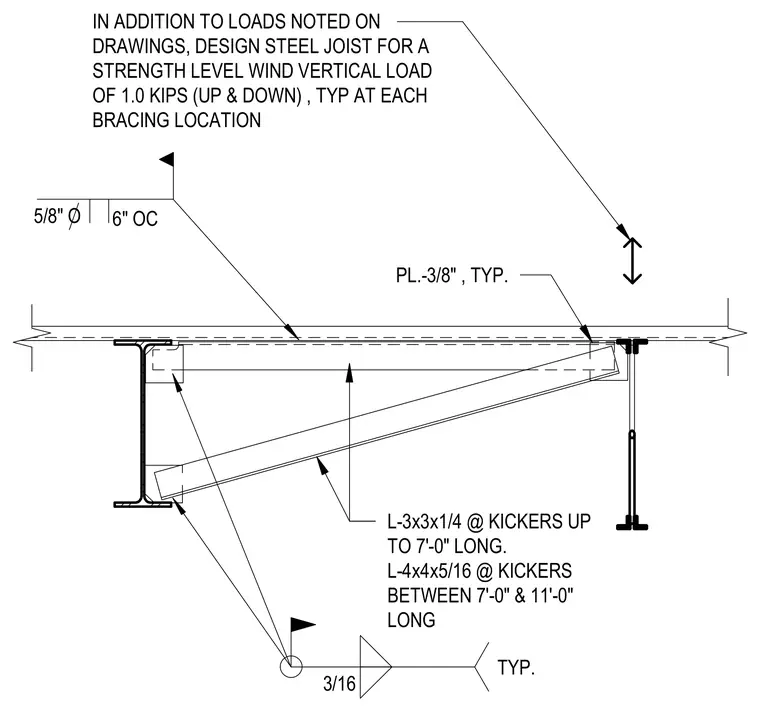

A structural steel bottom flange brace connection featuring angle kickers attached to a support member and steel joist. The assembly uses L-3x3x1/4 angles for kickers up to seven feet long and L-4x4x5/16 angles for kickers between seven and eleven feet long. A three-eighths inch plate is utilized with three-sixteenths inch fillet welds typically throughout. The steel joist is designed for a strength-level wind vertical load of 1.0 kips up and down at each bracing location.
3/16 TYP. L-3x3x1/4 @ KICKERS UP TO 7'-0" LONG. L-4x4x5/16 @ KICKERS BETWEEN 7'-0" & 11'-0" LONG PL.-3/8" , TYP. 5/8" O 6" OC IN ADDITION TO LOADS NOTED ON DRAWINGS, DESIGN STEEL JOIST FOR A STRENGTH LEVEL WIND VERTICAL LOAD OF 1.0 KIPS (UP & DOWN) , TYP AT EACH BRACING LOCATION
