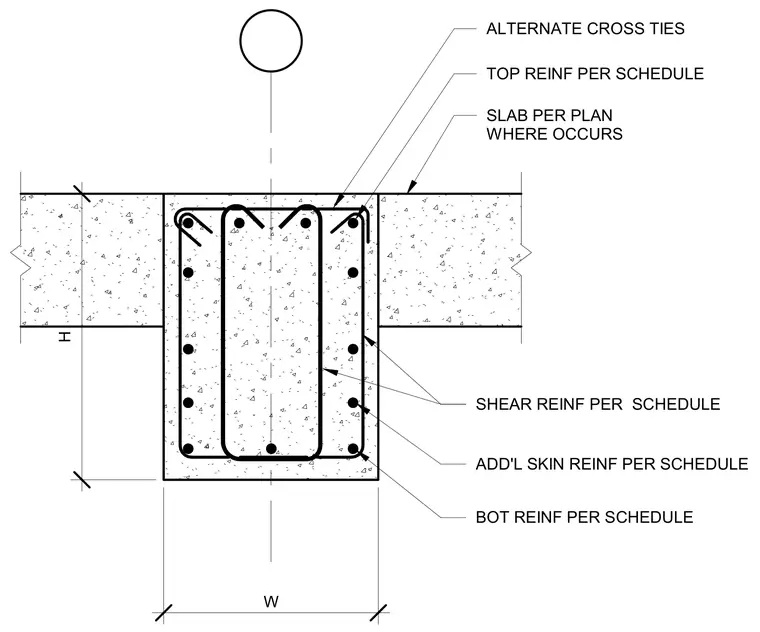

A cast-in-place concrete beam features top reinforcement per schedule at the upper corners and bottom reinforcement per schedule at the lower corners. Shear reinforcement encloses the core, supplemented by additional skin reinforcement along the sides of the beam stem. Alternate cross ties span horizontally across the interior of the section. The adjoining concrete slab is placed per plan where it occurs, bearing into the beam web at height H and width W.
W H TOP REINF PER SCHEDULE SLAB PER PLAN WHERE OCCURS SHEAR REINF PER SCHEDULE ADD'L SKIN REINF PER SCHEDULE BOT REINF PER SCHEDULE ALTERNATE CROSS TIES
