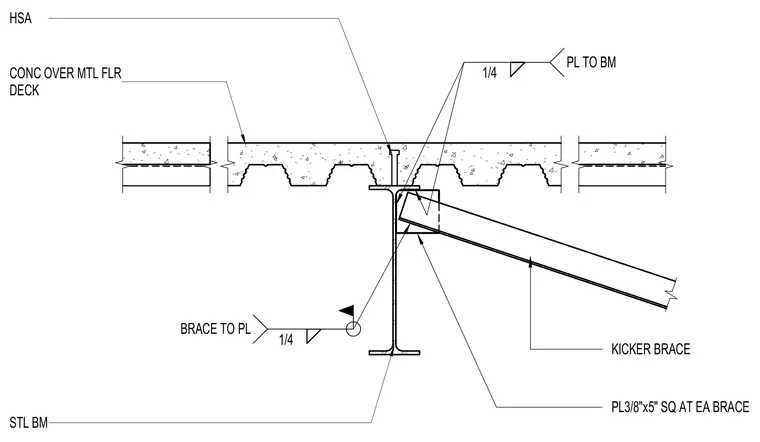

A three-eighths by five-inch square plate is welded to each kicker brace and to the steel beam web beneath a concrete over metal floor deck. A one-quarter-inch fillet weld secures the plate to the steel beam. A one-quarter-inch fillet weld secures the kicker brace to the plate. Stud anchors are embedded through the floor deck into the top flange of the steel beam.
PL3/8"x5" SQ AT EA BRACE KICKER BRACE STL BM CONC OVER MTL FLR DECK HSA 1/4 PL TO BM 1/4 BRACE TO PL
