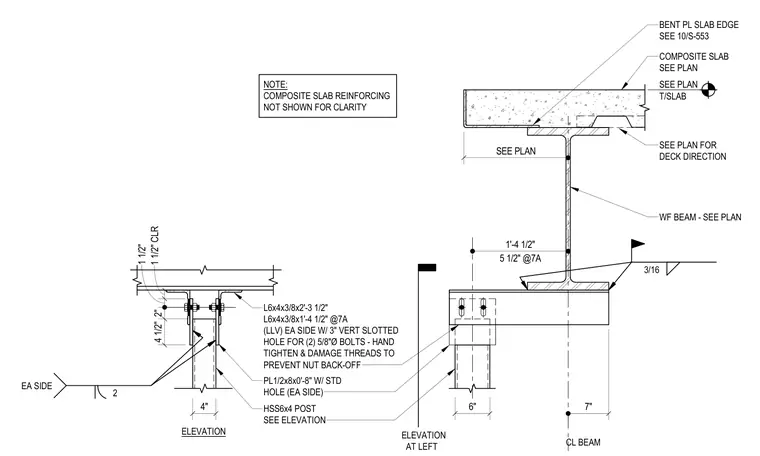

A top of post vertical slip connection utilizes an HSS6x4 hollow structural section post framing below a wide-flange beam and composite slab assembly. The connection incorporates L6x4x3/8 angles on each side featuring three-inch vertical slotted holes for two five-eighths inch diameter bolts, which are hand-tightened with damaged threads to prevent nut back-off. A one-half by eight by eight-inch plate with a standard hole is provided on each side. The assembly accommodates vertical movement while maintaining lateral stability beneath the floor structure.
3/16 SEE PLAN T/SLAB COMPOSITE SLAB SEE PLAN L6x4x3/8x2'-3 1/2" L6x4x3/8x1'-4 1/2" @7A (LLV) EA SIDE W/ 3" VERT SLOTTED HOLE FOR (2) 5/8"Ø BOLTS - HAND TIGHTEN & DAMAGE THREADS TO PREVENT NUT BACK-OFF PL1/2x8x0'-8" W/ STD HOLE (EA SIDE) HSS6x4 POST SEE ELEVATION 1 1/2" CLR 1 1/2" 2" 4 1/2" 2 EA SIDE ELEVATION AT LEFT ELEVATION BENT PL SLAB EDGE SEE 10/S-553 SEE PLAN FOR DECK DIRECTION CL BEAM WF BEAM - SEE PLAN 7" 6" 5 1/2" @7A 1'-4 1/2" SEE PLAN 4" NOTE: COMPOSITE SLAB REINFORCING NOT SHOWN FOR CLARITY
