Standard concrete cover and clear spacing parameters for reinforced concrete members featuring a three-bar bundled splice or lapping bar. The equivalent diameter "dbe" is derived from the total area of two bars to determine the appropriate category. Concrete cover "CC" and clear spacing "CS" dimensions are mapped across the reinforced concrete section.

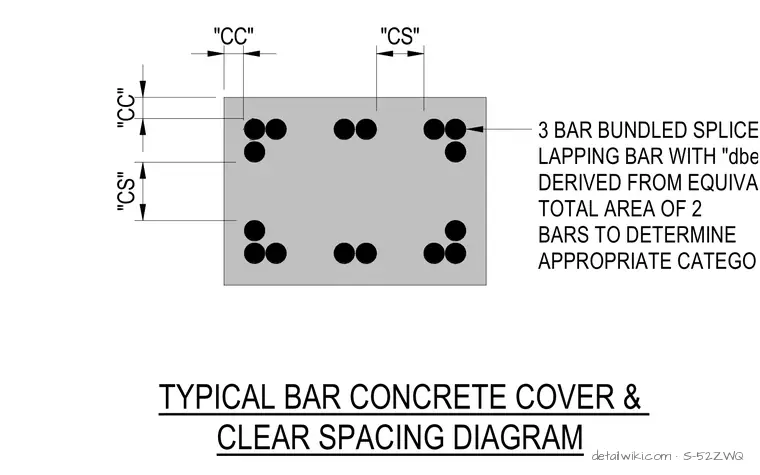

TYPICAL BAR CONCRETE COVER & CLEAR SPACING DIAGRAM 3 BAR BUNDLED SPLICE OR LAPPING BAR WITH "dbe" DERIVED FROM EQUIVALENT TOTAL AREA OF 2 BARS TO DETERMINE APPROPRIATE CATEGORY "CC" "CC" "CS" "CS"
