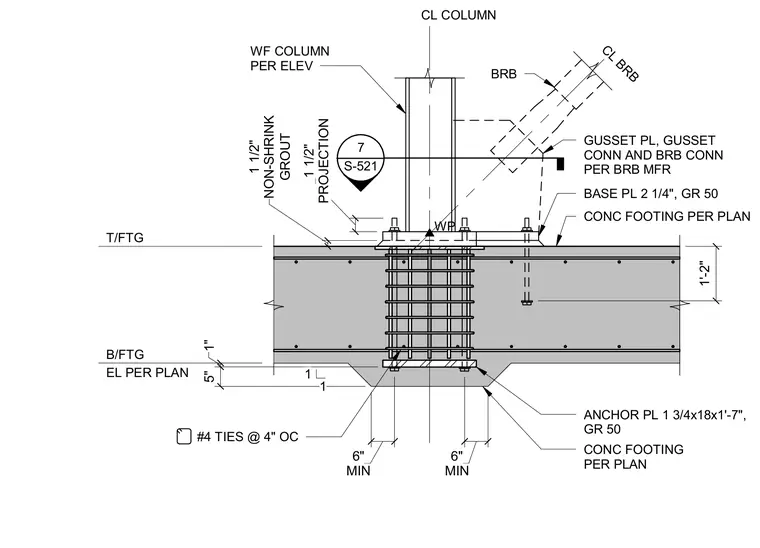

A wide-flange column and buckling-restrained brace connect to a heavy steel base plate bearing on one and one-half inches of non-shrink grout above a reinforced concrete footing. The column assembly includes a two-and-one-quarter-inch Grade 50 base plate with anchor bolts extending down to a bottom anchor plate measuring one and three-quarters by eighteen inches by one foot seven inches. The concrete footing is reinforced with number four ties spaced at four inches on center, positioned beneath the column centerline. A gusset plate connects the buckling-restrained brace to the column per the manufacturer's specifications. The top of footing and bottom of footing elevations are sized per plan with a minimum six-inch embedment and clearance.
T/FTG B/FTG EL PER PLAN WF COLUMN PER ELEV CL COLUMN GROUT 1 1/2" NON-SHRINK 5" 1" CONC FOOTING PER PLAN ANCHOR PL 1 3/4x18x1'-7", GR 50 PROJECTION 1 1/2" #4 TIES @ 4" OC CL BRB BRB GUSSET PL, GUSSET CONN AND BRB CONN PER BRB MFR BASE PL 2 1/4", GR 50 CONC FOOTING PER PLAN 1 1 MIN 6" MIN 6" 1'-2" 7 S-521 ____ WP
