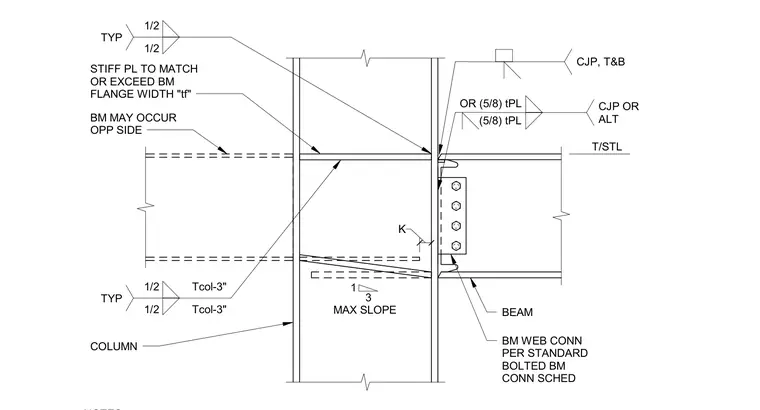

A structural steel beam frames into a column with a standard bolted beam web connection schedule. The top and bottom beam flanges feature complete joint penetration (CJP) welds or alternative plate connections using five-eighths-inch thick plates. Horizontal stiffener plates match or exceed the beam flange width and are welded to the column with one-half-inch fillet welds. Beams may occur on opposite sides of the column and accommodate a maximum slope of one in three. Additional framing conditions and stiffener placements are detailed per project specifications.
T/STL 3 1 1/2 1/2 TYP 1/2 Tcol-3" 1/2 Tcol-3" TYP STIFF PL TO MATCH OR EXCEED BM FLANGE WIDTH "tf" BM MAY OCCUR OPP SIDE COLUMN MAX SLOPE K BM WEB CONN PER STANDARD BOLTED BM CONN SCHED BEAM CJP, T&B CJP OR ALT OR (5/8) tPL (5/8) tPL
