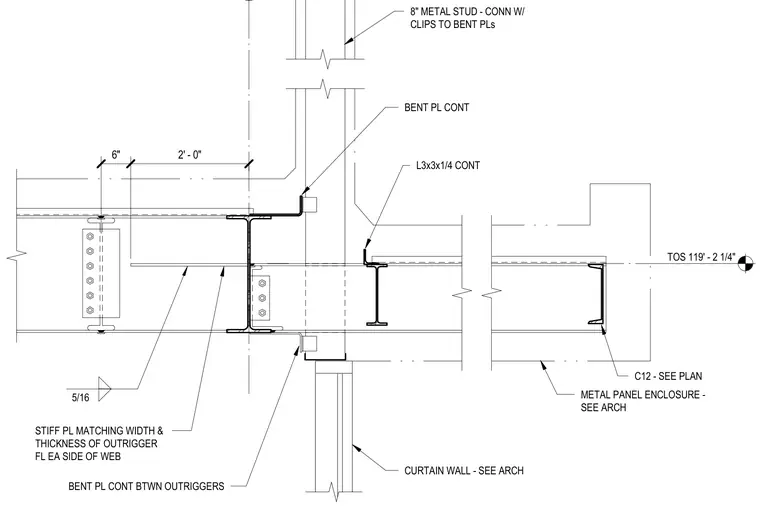

Continuous bent plates span between outriggers, supported by stiffener plates matching the width and thickness of the outrigger flange on each side of the web and welded with five-sixteenth-inch fillet welds. An L3x3x1/4 continuous angle connects to the structural framing, while eight-inch metal studs tie back to the bent plates using clips. A channel shape (C12) is detailed per plan and coordinates with the surrounding metal panel enclosure and curtain wall assemblies.
METAL PANEL ENCLOSURE - SEE ARCH L3x3x1/4 CONT CURTAIN WALL - SEE ARCH 6" 2' - 0" STIFF PL MATCHING WIDTH & THICKNESS OF OUTRIGGER FL EA SIDE OF WEB 5/16 C12 - SEE PLAN BENT PL CONT BTWN OUTRIGGERS BENT PL CONT 8" METAL STUD - CONN W/ CLIPS TO BENT PLs TOS 119' - 2 1/4"
