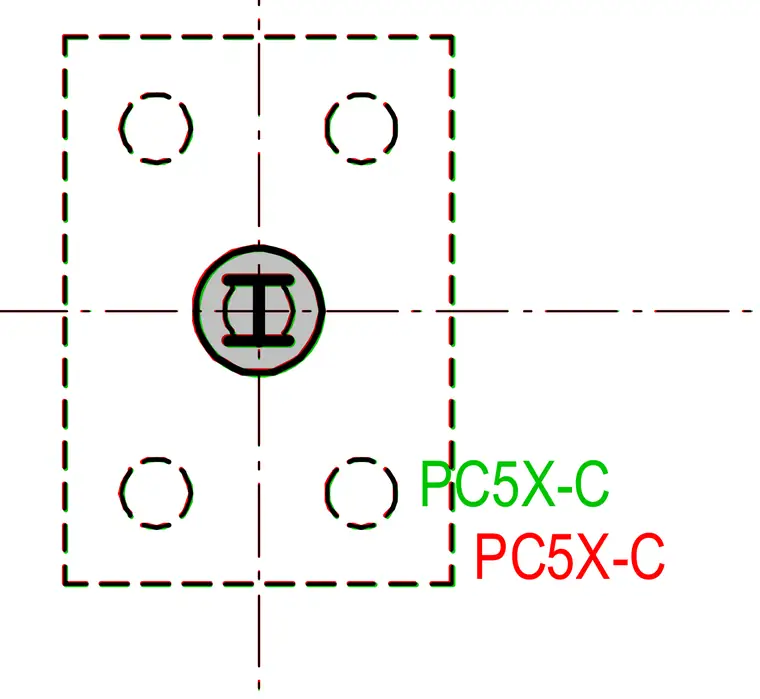

A structural steel shape is centered on a rectangular precast panel connection plate. Four corner bolt holes secure the assembly, complemented by a central fastener aligned on orthogonal centerlines.
