Concrete Stem Wall and Continuous Footing Detail

Elements

Walls Foundations / Footings Stem Walls Arches Site / Paving Connections / Plates

About this detail

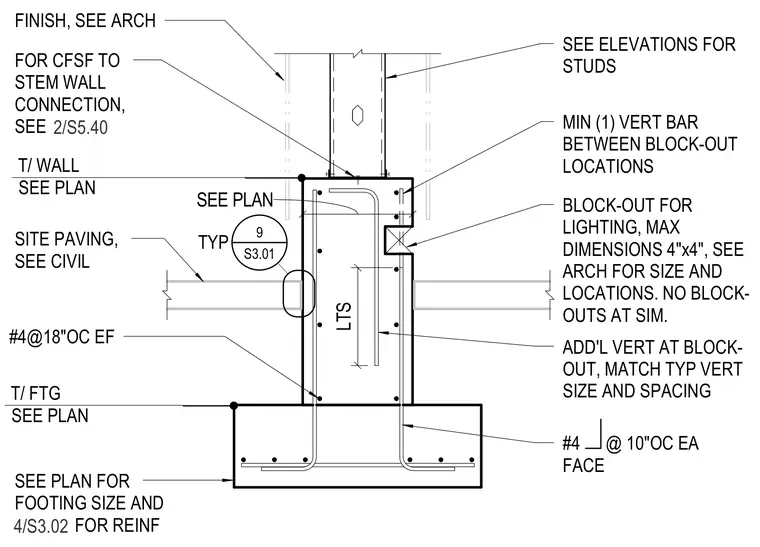

Concrete stem wall bears on a continuous concrete footing with footing size and reinforcement detailed per plan. The stem wall includes vertical reinforcing bars spaced at eighteen inches on center each face, with additional vertical bars placed at lighting block-out locations. A four-inch by four-inch block-out is provided for lighting with minimum one vertical bar between locations. Cold-formed steel framing connects to the top of the stem wall, with finishes coordinated per architectural drawings and site paving aligned per civil drawings.
