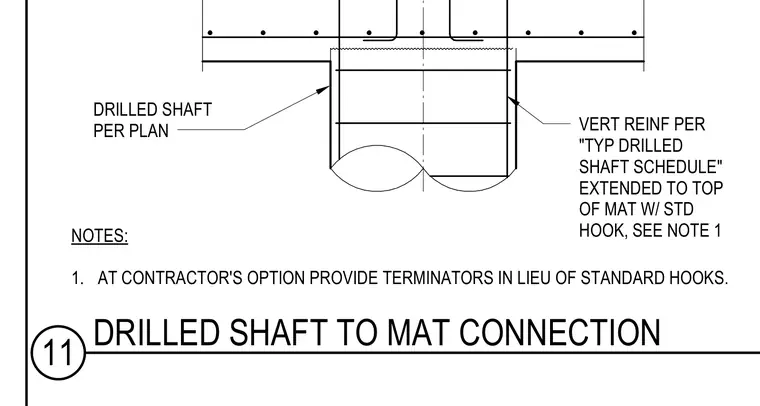

Vertical reinforcing bars from the drilled shaft extend up to the top of the mat foundation with standard hooks per the typical drilled shaft schedule, with mechanical terminators permitted as a contractor option. The drilled shaft is sized and detailed per structural plans.
VERT REINF PER "TYP DRILLED SHAFT SCHEDULE" EXTENDED TO TOP OF MAT W/ STD HOOK, SEE NOTE 1 DRILLED SHAFT PER PLAN NOTES: 1. AT CONTRACTOR'S OPTION PROVIDE TERMINATORS IN LIEU OF STANDARD HOOKS. 11 DRILLED SHAFT TO MAT CONNECTION
