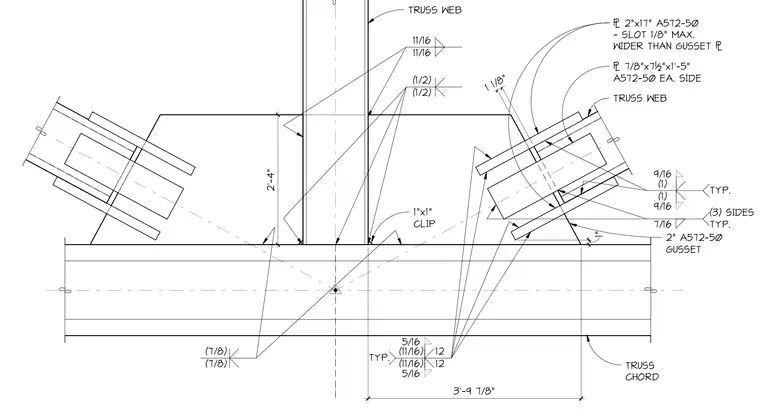

A steel truss web frames into a horizontal truss chord using ASTM A572 Grade 50 gusset plates. A two-inch thick by seventeen-inch gusset plate features a slot one-eighth inch maximum wider than the internal gusset, paired with seven-eighths by seven and one-half inch by one-foot five-inch plates on each side. Truss webs connect to the assembly with welded clips and fillet welds sized five-sixteenths, seven-sixteenths, and nine-sixteenths of an inch. Dimensions establish a vertical clearance of two feet four inches and a horizontal spacing of three feet nine and seven-eighths inches.
2'-4" 3'-9 7/8" 1" TRUSS WEB 1"x1" CLIP 11/16 11/16 (1/2) (1/2) (7/8) (7/8) TRUSS CHORD 2" A572-50 GUSSET (11/16) 12 (11/16) 12 TYP. 7/16 (3) SIDES TYP. 5/16 (1) (1) TYP. 9/16 TRUSS WEB 7/8"x7½"x1' -5" A572-50 EA. SIDE 2"x17" A572 -50 - SLOT 1/8" MAX. WIDER THAN GUSSET 1 1/8" 9/16 5/16
