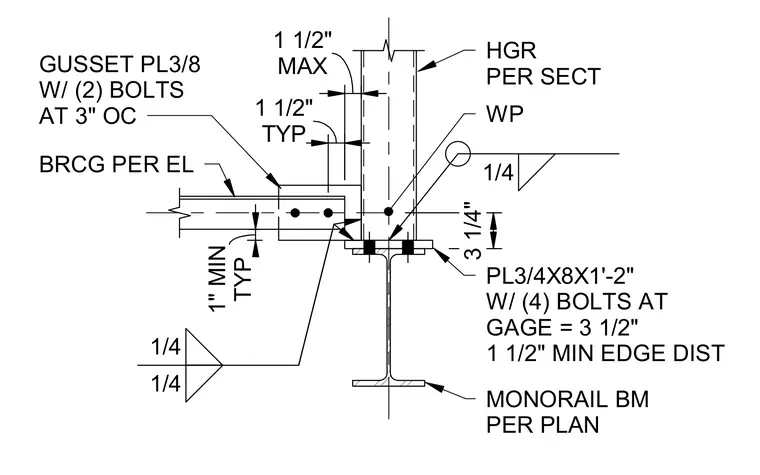

A 3/8-inch gusset plate connects to bracing with two bolts spaced at 3 inches on center. A base plate measuring 3/4-inch by 8 inches by 1 foot 2 inches secures with four bolts at a 3 1/2-inch gauge and a 1 1/2-inch minimum edge distance. A monorail beam sized per plan attaches below, complemented by a hanger per section and quarter-inch fillet welds where indicated. Clearances include a 1-inch minimum typical dimension and a 1 1/2-inch maximum offset.
1/4 1/4 GUSSET PL3/8 W/ (2) BOLTS AT 3" OC BRCG PER EL PL3/4X8X1'-2" W/ (4) BOLTS AT GAGE = 3 1/2" 1 1/2" MIN EDGE DIST 1/4 MONORAIL BM PER PLAN HGR PER SECT WP MAX 1 1/2" TYP 1 1/2" TYP 1" MIN 3 1/4"
