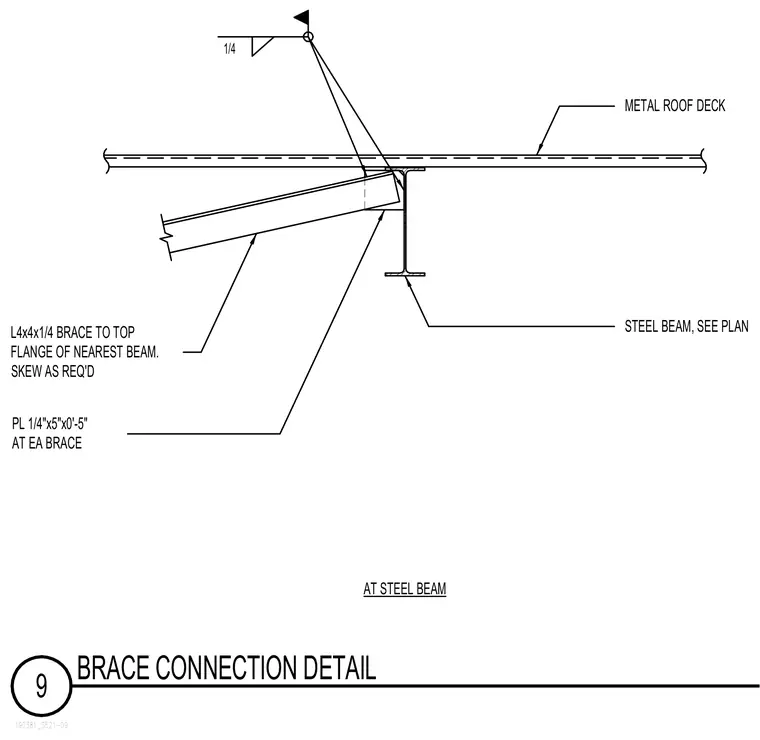

An angle brace connects to the top flange of a steel beam located beneath a metal roof deck. An L4x4x1/4 structural angle member is skewed as required and welded to the nearest beam top flange with a quarter-inch fillet weld. A one-quarter-inch by five-inch by five-inch connection plate is welded at each brace using a quarter-inch fillet weld.
190381_S521-09 9 BRACE CONNECTION DETAIL METAL ROOF DECK STEEL BEAM, SEE PLAN PL 1/4"x5"x0'-5" 1/4 AT EA BRACE AT STEEL BEAM L4x4x1/4 BRACE TO TOP FLANGE OF NEAREST BEAM. SKEW AS REQ'D
