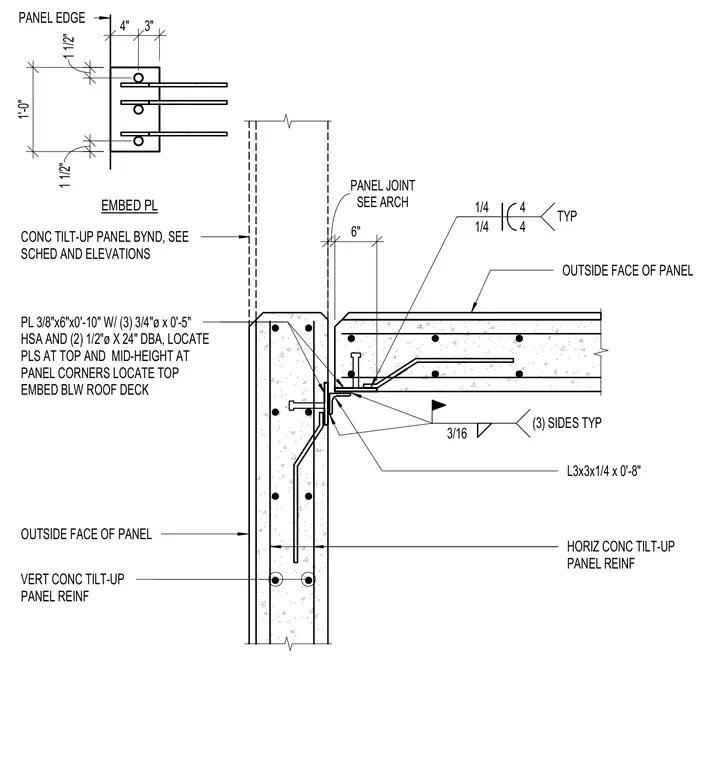

Two concrete tilt-up wall panels meet at a corner intersection tied together with a 3/8-inch by 6-inch by 0-foot 10-inch embed plate welded to a 3-inch by 3-inch by 1/4-inch angle measuring 0-foot 8-inch long. The embed plate anchors into the concrete with three 3/4-inch diameter by 0-foot 5-inch heavy stud anchors and two 1/2-inch diameter by 24-inch deformed bar anchors. Plates are located at the top and mid-height at panel corners, with the top embed positioned below the roof deck. A three-sixteenth-inch fillet weld secures the assembly on three sides typical.
VERT CONC TILT-UP PANEL REINF OUTSIDE FACE OF PANEL HORIZ CONC TILT-UP PANEL REINF L3x3x1/4 x 0'-8" OUTSIDE FACE OF PANEL PL 3/8"x6"x0'-10" W/ (3) 3/4"ø x 0'-5" HSA AND (2) 1/2"ø X 24" DBA, LOCATE PLS AT TOP AND MID-HEIGHT AT PANEL CORNERS LOCATE TOP EMBED BLW ROOF DECK CONC TILT-UP PANEL BYND, SEE SCHED AND ELEVATIONS 1/4 1/4 4 4 TYP 3/16 (3) SIDES TYP SEE ARCH PANEL JOINT 6" EMBED PL 4" 3" 1'-0" 1 1/2" 1 1/2" PANEL EDGE
