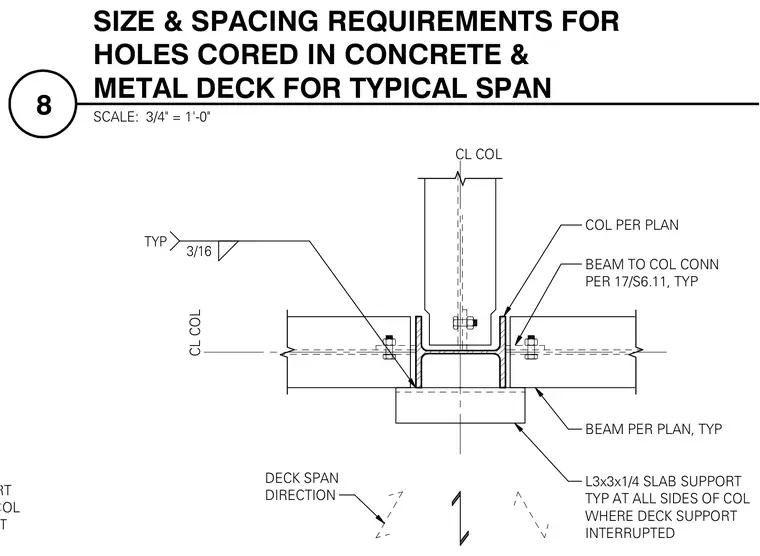

An angle L3x3x1/4 provides slab support on all sides of the column where the standard deck support is interrupted. A structural steel beam per plan connects to the column with a designated connection. A typical three-sixteenths inch fillet weld secures components as indicated. The metal deck spans in the designated direction around the column centerline.
CL COL CL COL 3/16 TYP COL PER PLAN BEAM TO COL CONN PER 17/S6.11, TYP BEAM PER PLAN, TYP L3x3x1/4 SLAB SUPPORT TYP AT ALL SIDES OF COL WHERE DECK SUPPORT INTERRUPTED DECK SPAN DIRECTION L3x3x1/4 SLAB SUPPORT TYP AT ALL SIDES OF COL WHERE DECK SUPPORT SCALE: 3/4" = 1'-0" 8 SIZE & SPACING REQUIREMENTS FOR HOLES CORED IN CONCRETE & METAL DECK FOR TYPICAL SPAN
