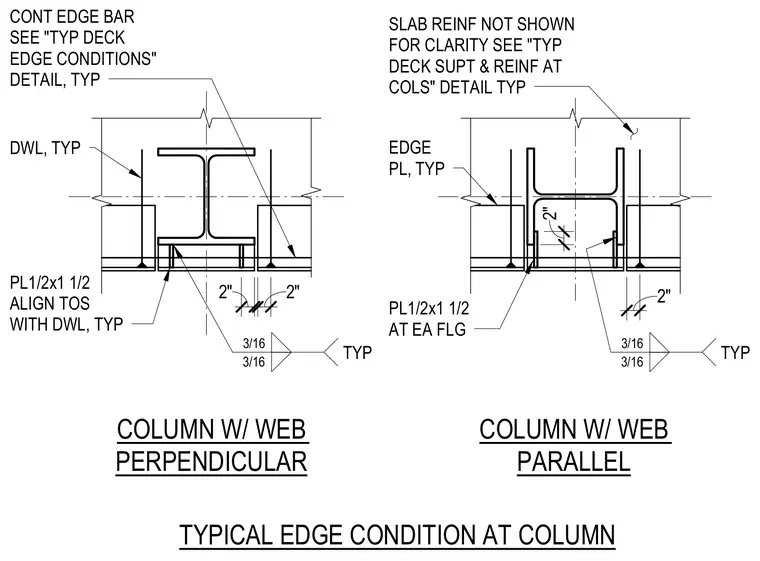

Half-inch by one-and-a-half-inch plates are welded to each flange with three-sixteenth-inch fillet welds, aligned top of steel with the dowels. Continuous edge bars and dowels reinforce the slab edge around the column profile. Slab reinforcement is omitted for clarity with references provided to companion deck support details.
TYPICAL EDGE CONDITION AT COLUMN COLUMN W/ WEB PERPENDICULAR COLUMN W/ WEB PARALLEL PL1/2x1 1/2 ALIGN TOS WITH DWL, TYP PL1/2x1 1/2 AT EA FLG 2" TYP 3/16 3/16 2" TYP 3/16 3/16 2" 2" DWL, TYP EDGE PL, TYP SLAB REINF NOT SHOWN FOR CLARITY SEE "TYP DECK SUPT & REINF AT COLS" DETAIL TYP CONT EDGE BAR SEE "TYP DECK EDGE CONDITIONS" DETAIL, TYP
