Structural · S-4Z3HW

Cross Tie Rods and Thickness Allowance in Composite Plate Shear Wall

Elements

About this detail

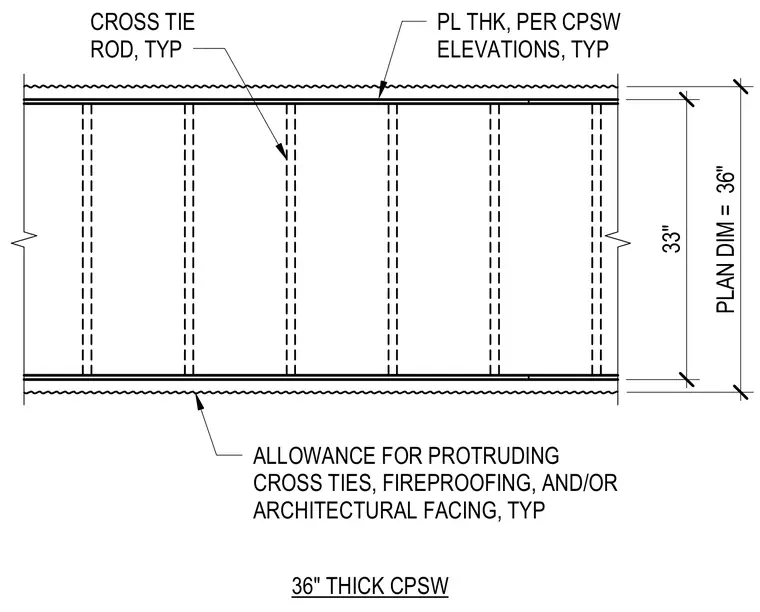

Cross tie rods are spaced within a thirty-six inch thick composite plate shear wall assembly. A plan dimension of thirty-three inches is indicated between structural boundaries. Plate thicknesses are specified per composite plate shear wall elevations. An allowance is provided for protruding cross ties, fireproofing, and architectural facing.
