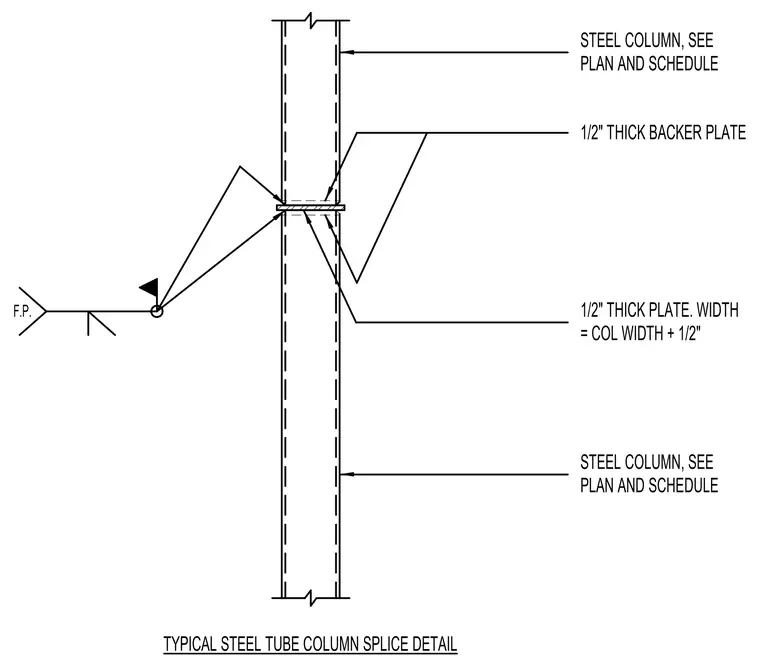

The steel tube column splice joins upper and lower structural steel columns sized per plan and schedule. A half-inch thick backer plate aligns the connection internally, while a half-inch thick plate with a width equal to the column width plus one-half inch acts as the splice plate between the column sections.
F.P. STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL COLUMN, SEE PLAN AND SCHEDULE 1/2" THICK PLATE. WIDTH = COL WIDTH + 1/2" 1/2" THICK BACKER PLATE TYPICAL STEEL TUBE COLUMN SPLICE DETAIL
