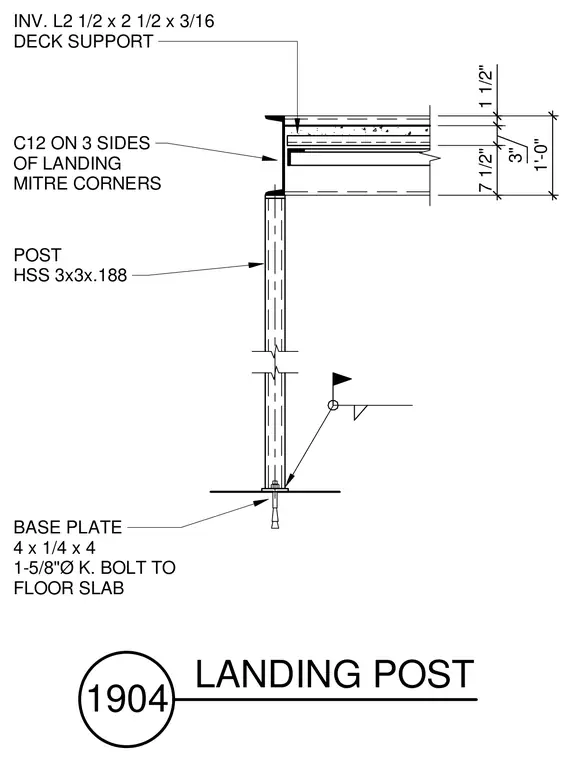

An HSS 3x3x.188 hollow structural section post supports a stair landing framed with a C12 channel on three sides with mitred corners. An inverted L 2 1/2 x 2 1/2 x 3/16 angle provides deck support at the landing perimeter. The post anchors to the floor slab using a four-inch by four-inch by quarter-inch base plate fastened with one 5/8-inch diameter anchor bolt.
BASE PLATE 4 x 1/4 x 4 1-5/8"Ø K. BOLT TO FLOOR SLAB POST HSS 3x3x.188 C12 ON 3 SIDES OF LANDING MITRE CORNERS INV. L2 1/2 x 2 1/2 x 3/16 DECK SUPPORT 7 1/2" 3" 1 1/2" 1'-0" 1904 LANDING POST
