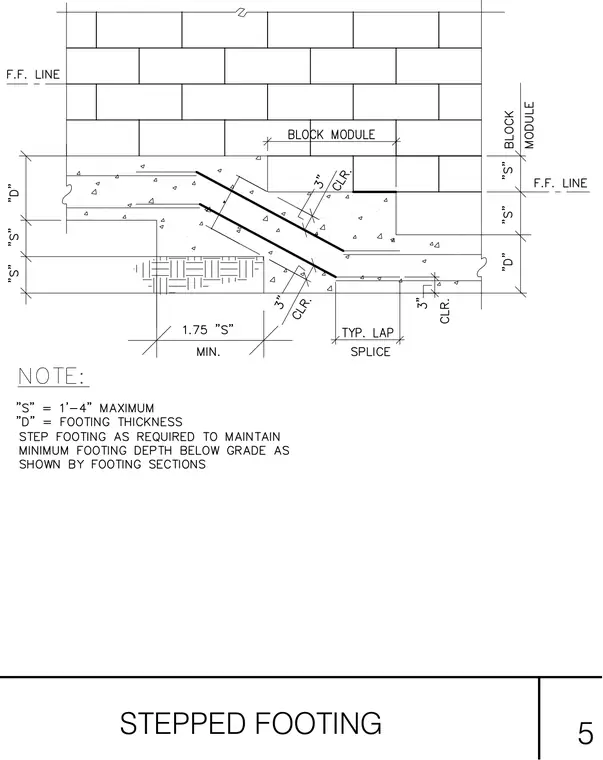

Concrete masonry unit walls bear on a stepped concrete footing featuring a maximum step height of one foot four inches. The concrete footing incorporates a sloping transition zone with a minimum horizontal dimension of one and three-quarters times the step height. Reinforcing steel requires a typical lap splice with three inches of clear cover. The finished floor line and block module dimensions coordinate with the footing steps to maintain minimum footing depth below grade.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
