A typical mild reinforced concrete slab closure strip is placed between adjacent concrete slabs. Each side features a keyed construction joint with bottom reinforcing steel continuing as specified per plans. The closure strip span includes a lap splice length equal to the development length of the largest top or bottom bar plus three inches on each side. Additional number four reinforcing bars spaced at twenty-four inches on center are provided where top reinforcing is absent per the plan. The closure strip slab must be cast a minimum of twenty-eight days after adjacent slab placement, and the slab must remain shored until the closure strip reaches its twenty-eight-day design strength.

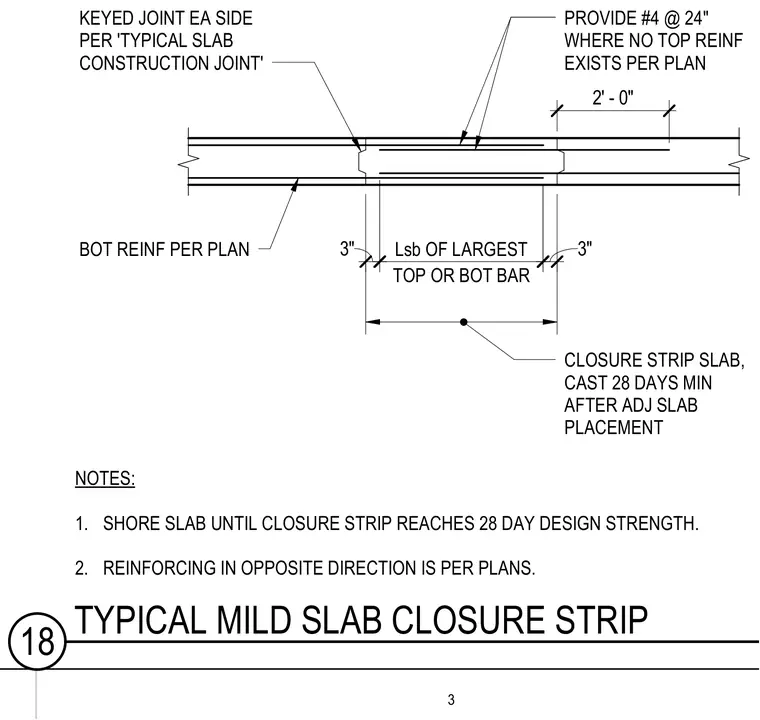

NOTES: 1. SHORE SLAB UNTIL CLOSURE STRIP REACHES 28 DAY DESIGN STRENGTH. 2. REINFORCING IN OPPOSITE DIRECTION IS PER PLANS. KEYED JOINT EA SIDE PER 'TYPICAL SLAB CONSTRUCTION JOINT' PROVIDE #4 @ 24" WHERE NO TOP REINF EXISTS PER PLAN 2' - 0" 35" 3" 3" CLOSURE STRIP SLAB, CAST 28 DAYS MIN AFTER ADJ SLAB PLACEMENT BOT REINF PER PLAN Lsb OF LARGEST TOP OR BOT BAR 3 18 TYPICAL MILD SLAB CLOSURE STRIP
