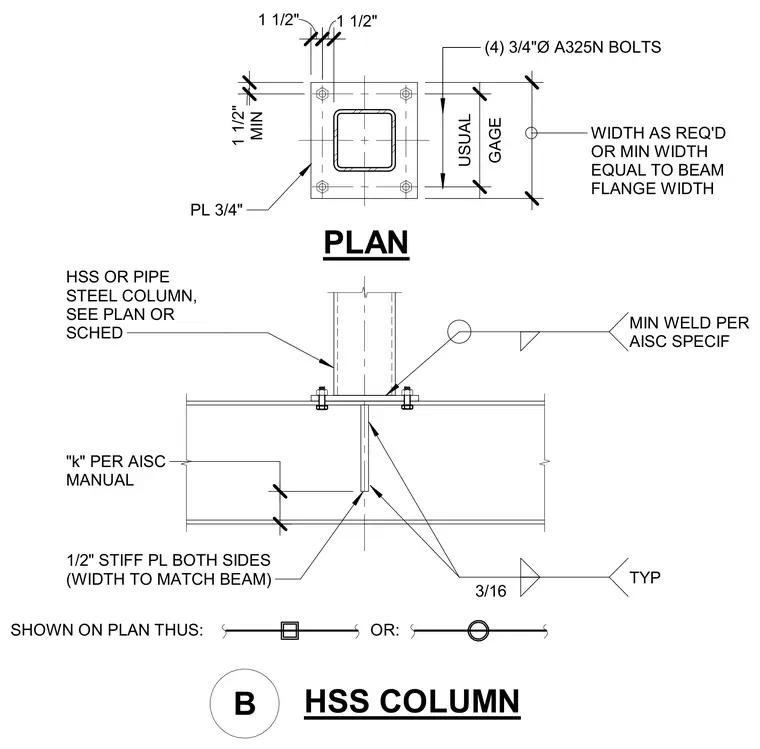

An HSS or pipe steel column connects to a supporting steel beam via a three-quarter-inch base plate secured by four three-quarter-inch A325N bolts. Two half-inch stiffener plates are welded to both sides of the beam web, sized to match the beam width and positioned according to AISC manual dimensions. A minimum three-sixteenth-inch fillet weld connects the base plate to the column per AISC specifications. The base plate width is sized as required or matches the beam flange width.
SHOWN ON PLAN THUS: HSS OR PIPE STEEL COLUMN, SEE PLAN OR SCHED 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) "k" PER AISC MANUAL HSS COLUMN B PL 3/4" (4) 3/4"Ø A325N BOLTS PLAN MIN 1 1/2" 1 1/2" GAGE USUAL WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH OR: 3/16 TYP MIN WELD PER AISC SPECIF 1 1/2"
