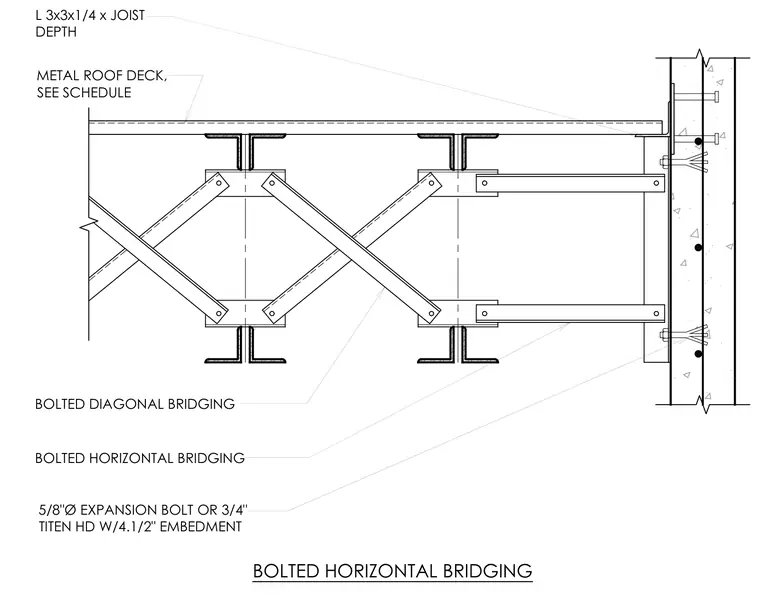

Metal roof deck bears on an angle ledger connected to a tilt-up concrete wall panel. Open-web steel joists feature bolted diagonal bridging and bolted horizontal bridging, secured with angles sized 3x3x1/4 by joist depth. The wall connection utilizes five-eighths-inch-diameter expansion bolts or three-quarter-inch Titen HD anchors with four-and-a-half-inch embedment into the concrete panel.
5/8"Ø EXPANSION BOLT OR 3/4" TITEN HD W/4.1/2" EMBEDMENT L 3x3x1/4 x JOIST DEPTH BOLTED DIAGONAL BRIDGING BOLTED HORIZONTAL BRIDGING BOLTED HORIZONTAL BRIDGING METAL ROOF DECK, SEE SCHEDULE
