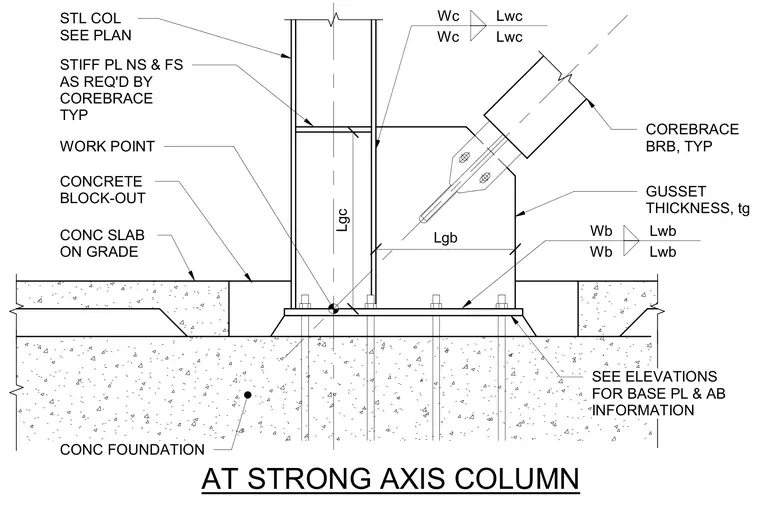

A CoreBrace buckling-restrained brace connects to a gusset plate welded to a steel column and its base plate at the concrete foundation. Stiffener plates are installed near side and far side on the steel column as required by the brace design. A concrete block-out in the concrete slab on grade surrounds the column base and foundation connection. Anchor bolts and base plate sizing details are referenced to the structural elevations. Weld symbols specify the required fillet or groove welds for the gusset plate and stiffeners.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL NS & FS AS REQ'D BY COREBRACE TYP CONC FOUNDATION WORK POINT Wc Lwc Wc Lwc COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION AT STRONG AXIS COLUMN Lgc Lgb
