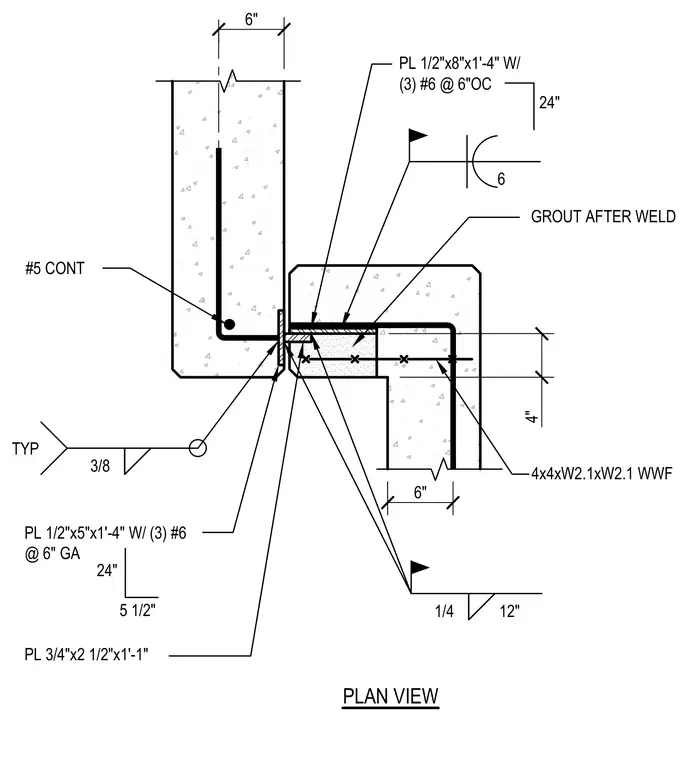

This structural plan detail shows a concrete panel joint at a building corner connected via embedded steel plates and welded reinforcing. A 1/2-inch by 8-inch by 1'-4" plate with three #6 reinforcing bars at 6 inches on center ties into one concrete panel, while a 1/2-inch by 5-inch by 1'-4" plate with three #6 bars at 6 inches gauge connects the adjacent panel. A 3/4-inch by 2 1/2-inch by 1'-1" plate bridges the joint with a typical 3/8-inch fillet weld. Continuous #5 reinforcing bars run horizontally within the panels alongside 4x4-W2.1xW2.1 welded wire fabric. The joint cavity is grouted after welding is completed.
4" PL 3/4"x2 1/2"x1'-1" 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 1/4 12" 6" 3/8 TYP PL 1/2"x5"x1'-4" W/ (3) #6 @ 6" GA 5 1/2" 24" PLAN VIEW 6 PL 1/2"x8"x1'-4" W/ (3) #6 @ 6"OC 24" 6" #5 CONT
