Straight bar development length in special moment frame columns is evaluated relative to the confined core length, designated as CCL. When the required seismic development length exceeds the confined core length, the portion extending beyond is multiplied by a factor of 1.6. When the required seismic development length is less than or equal to the confined core length, the full development length fits entirely within the confined core boundaries.

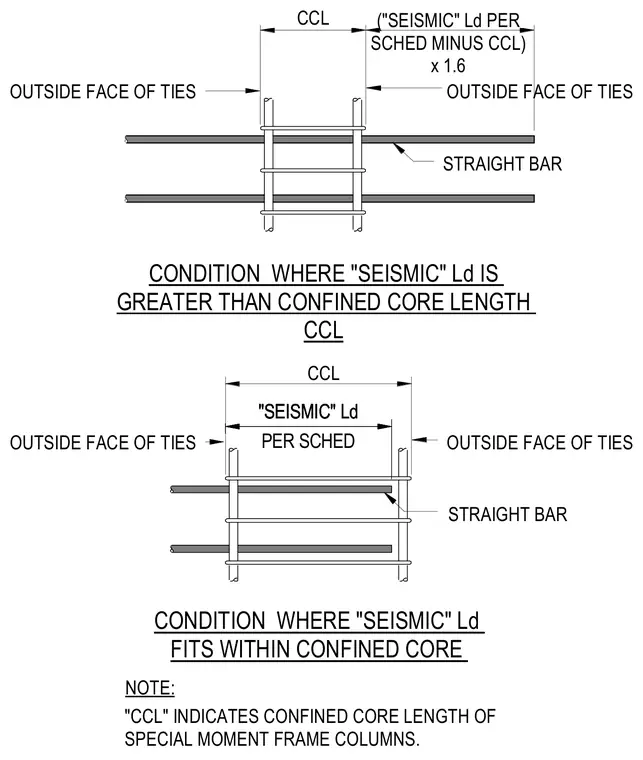

"CCL" INDICATES CONFINED CORE LENGTH OF SPECIAL MOMENT FRAME COLUMNS. STRAIGHT BAR CCL NOTE: CONDITION WHERE "SEISMIC" Ld FITS WITHIN CONFINED CORE CONDITION WHERE "SEISMIC" Ld IS GREATER THAN CONFINED CORE LENGTH CCL STRAIGHT BAR OUTSIDE FACE OF TIES OUTSIDE FACE OF TIES CCL "SEISMIC" Ld ("SEISMIC" Ld PER SCHED MINUS CCL) x 1.6 "SEISMIC" Ld "SEISMIC" Ld PER SCHED "SEISMIC" Ld OUTSIDE FACE OF TIES OUTSIDE FACE OF TIES
