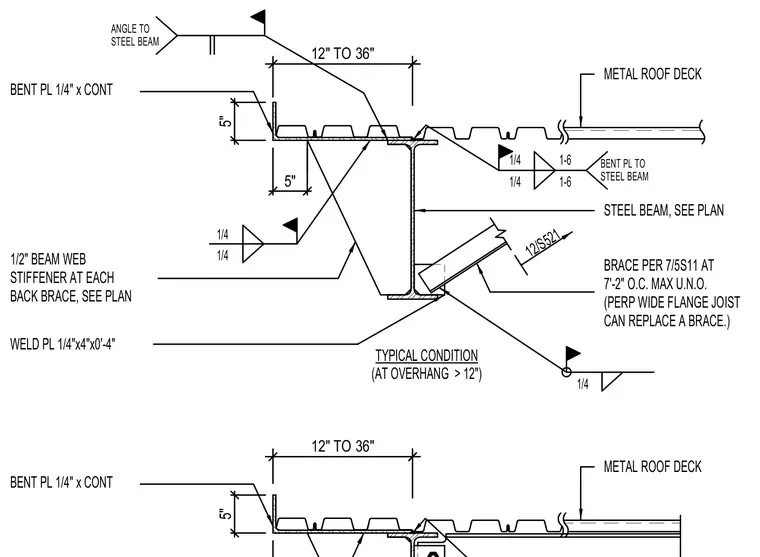

A steel beam web stiffener and bracing connection occurs at a metal roof deck overhang exceeding twelve inches. A half-inch thick beam web stiffener plate is welded to the steel beam web at each back brace location, sized per plan. A quarter-inch continuous bent plate connects to the steel beam and metal roof deck with quarter-inch fillet welds. Diagonal bracing members tie into the assembly per structural notes, spaced at seven feet two inches on center maximum unless noted otherwise. A perpendicular wide flange joist can replace a brace where indicated.
STEEL BEAM, SEE PLAN WELD PL 1/4"x4"x0'-4" 1/2" BEAM WEB (AT OVERHANG > 12") BENT PL 1/4" x CONT TYPICAL CONDITION 1/4 1/4 1/4 1-6 BENT PL TO STEEL BEAM ANGLE TO STEEL BEAM STIFFENER AT EACH 1/4 1-6 METAL ROOF DECK BENT PL 1/4" x CONT METAL ROOF DECK BRACE PER 7/5S11 AT 7'-2" O.C. MAX U.N.O. (PERP WIDE FLANGE JOIST CAN REPLACE A BRACE.) 12/S521 1/4 5" BACK BRACE, SEE PLAN 12" TO 36" 12" TO 36" 5" 5"
