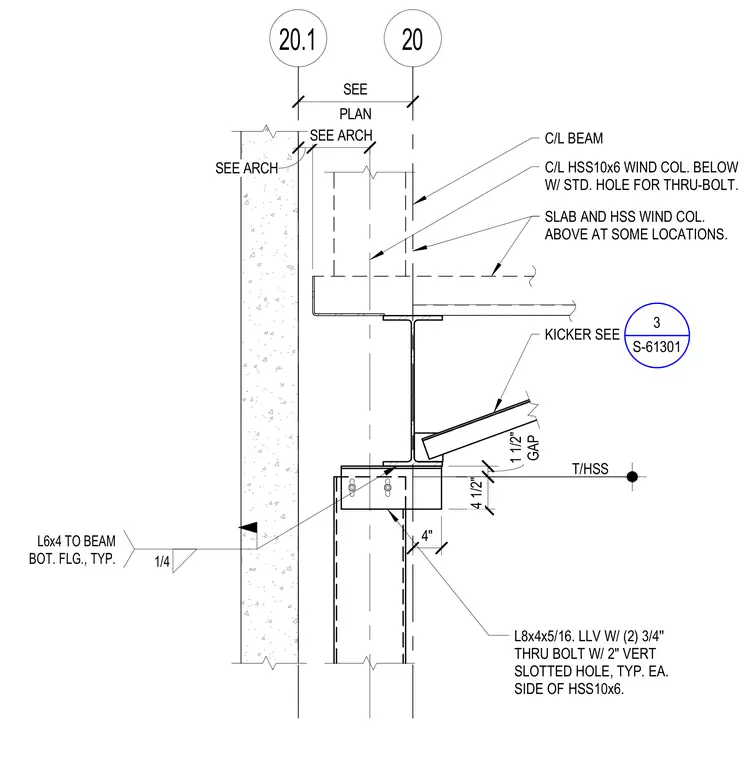

An HSS10x6 wind column below connects to a structural beam using an L8x4x5/16 angle fastened with two three-quarter-inch through-bolts with two-inch vertical slotted holes typically on each side of the hollow structural section. A typical L6x4 angle welds to the beam bottom flange with a quarter-inch fillet weld. A kicker brace frames into the assembly with a one-and-a-half-inch gap, and a concrete slab and upper HSS wind column are located above at select locations.
T/HSS 20 20.1 GAP 1 1/2" 1/4 L6x4 TO BEAM BOT. FLG., TYP. L8x4x5/16. LLV W/ (2) 3/4'' THRU BOLT W/ 2'' VERT SLOTTED HOLE, TYP. EA. SIDE OF HSS10x6. KICKER SEE C/L BEAM SLAB AND HSS WIND COL. ABOVE AT SOME LOCATIONS. C/L HSS10x6 WIND COL. BELOW W/ STD. HOLE FOR THRU-BOLT. PLAN SEE SEE ARCH SEE ARCH 4" 3 S-61301 4 1/2"
