Structural · S-4WSE5

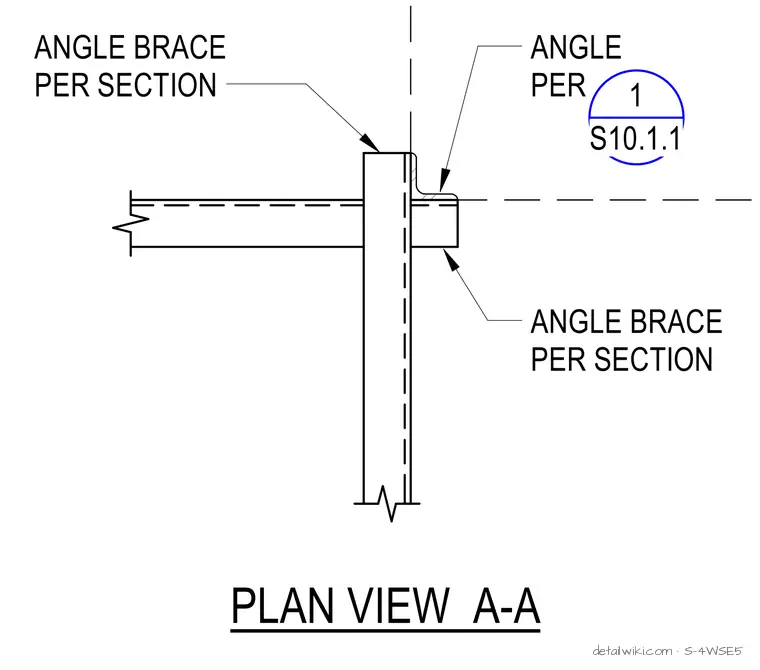

Plan View A-A

Units: metric
Discipline: Structural

Materials

Steel

Elements

Bracing

Connections

Bracing Connection

Text on the drawing

ANGLE BRACE PER SECTION ANGLE BRACE PER SECTION PLAN VIEW A-A ANGLE PER 1 S10.1.1
