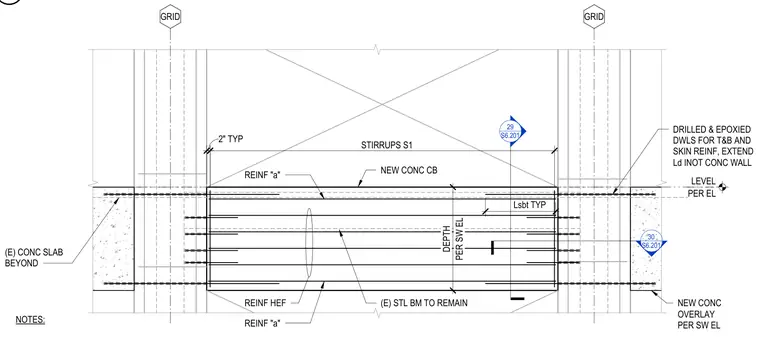

A new concrete coupling beam spans between existing concrete walls, incorporating a retained existing steel beam at its core. Drilled and epoxied dowels anchor the top, bottom, and skin reinforcement into the existing concrete walls with development lengths extending into the support. Stirrups and specific longitudinal reinforcement sizes complete the assembly along with a new concrete overlay.
29 S6.201 30 S6.201 GRID GRID PER EL LEVEL (E) STL BM TO REMAIN (E) CONC SLAB BEYOND NEW CONC CB DRILLED & EPOXIED DWLS FOR T&B AND SKIN REINF, EXTEND Ld INOT CONC WALL STIRRUPS S1 2" TYP PER SW EL DEPTH REINF HEF REINF "a" NEW CONC OVERLAY PER SW EL NOTES: REINF "a" Lsbt TYP 3/8" = 1'-0" 17
