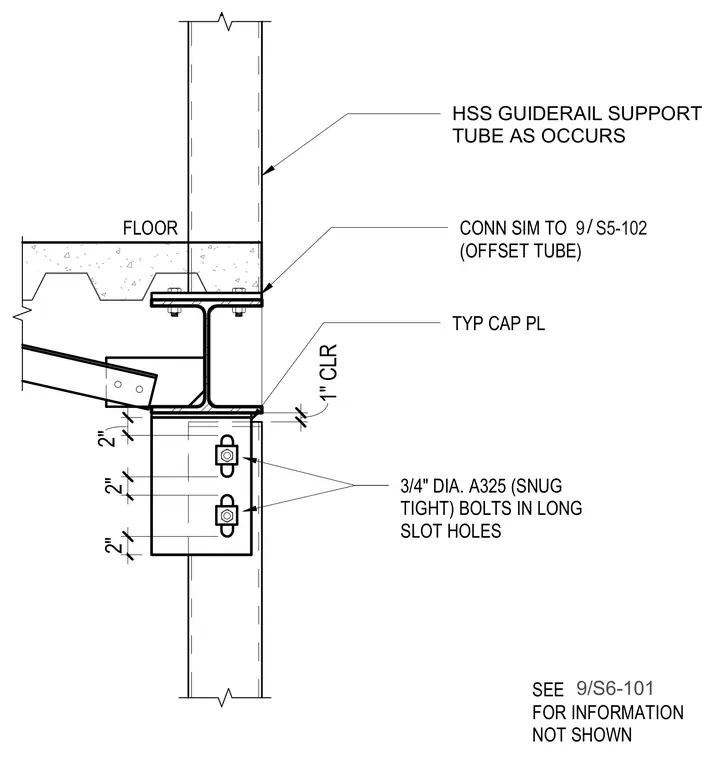

An HSS guiderail support tube connects to a structural steel beam supporting a concrete floor slab on metal deck. The assembly features a typical cap plate and a bolted connection utilizing three-quarter-inch diameter ASTM A325 snug-tight bolts installed in long slot holes. A one-inch clearance is maintained between structural elements with framing details similar to adjacent sheet references.
FLOOR 2" 2" 2" 1" CLR TYP CAP PL CONN SIM TO (OFFSET TUBE) SEE FOR INFORMATION NOT SHOWN 9/S6-101 HSS GUIDERAIL SUPPORT TUBE AS OCCURS 3/4" DIA. A325 (SNUG TIGHT) BOLTS IN LONG SLOT HOLES / 9 S5-102
