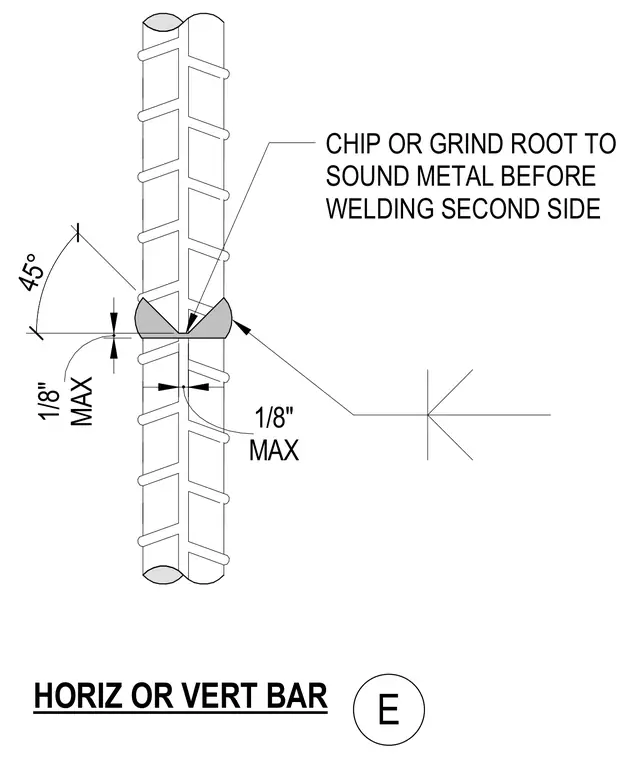

Two aligned reinforcing bars are joined end-to-end with a full-penetration weld preparation featuring a forty-five-degree bevel angle. A root opening of one-eighth inch maximum separates the bar ends. The root must be chipped or ground to sound metal before welding the second side.
MAX 1/8" CHIP OR GRIND ROOT TO SOUND METAL BEFORE WELDING SECOND SIDE HORIZ OR VERT BAR E MAX 1/8" 45°
