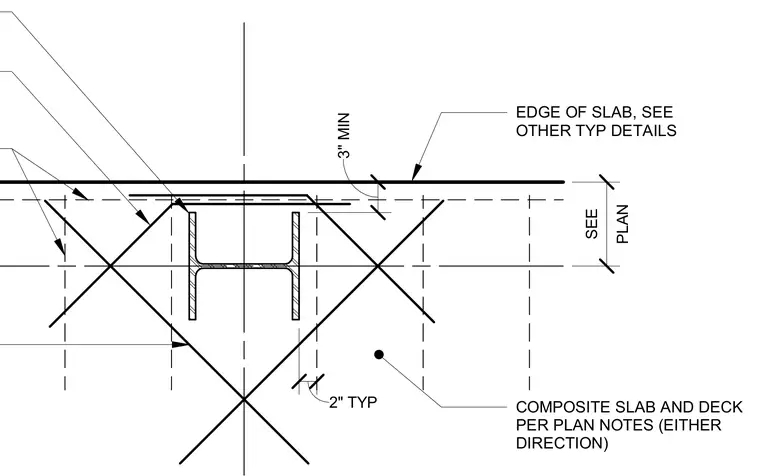

A three-inch minimum composite slab and metal deck bears over a wide-flange steel beam, with slab thickness and deck configuration sized per plan notes in either direction. The edge of slab aligns with the typical details indicated on the drawings.
3" MIN COMPOSITE SLAB AND DECK PER PLAN NOTES (EITHER DIRECTION) EDGE OF SLAB, SEE OTHER TYP DETAILS 2" TYP PLAN SEE
