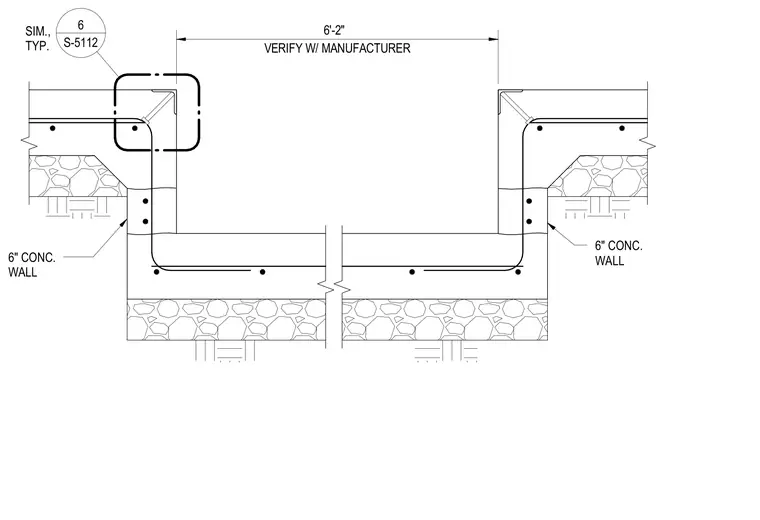

A six-inch concrete wall pit provides the structural recess for a loading dock leveler. The clear span measures six feet two inches wide and requires verification with the equipment manufacturer. Reinforcing steel is placed within the cast-in-place concrete walls and base slab resting on compacted subgrade. Edge angles protect the top corners of the concrete pit from impact during loading operations.
SIM., TYP. 6" CONC. WALL 6" CONC. WALL VERIFY W/ MANUFACTURER 6'-2" S-5112 6
