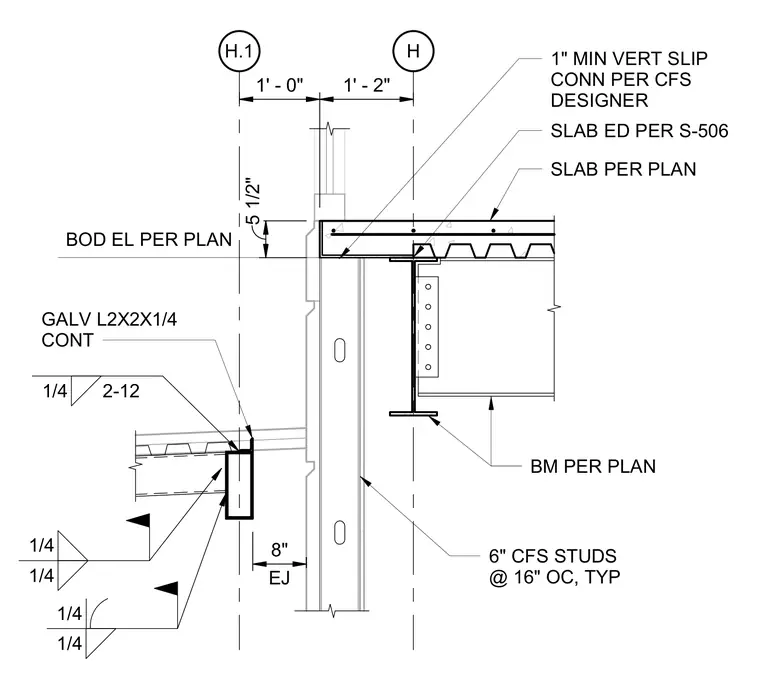

A vertical slip connection ties a concrete slab on metal deck to cold-formed steel framing. The assembly features six-inch cold-formed steel studs spaced at sixteen inches on center alongside an eight-inch expansion joint. A continuous galvanized two-by-two-by-one-quarter-inch angle is welded with quarter-inch welds. A one-inch minimum vertical slip connection is provided per the cold-formed steel designer specifications.
H BM PER PLAN 1' - 0" 1' - 2" SLAB PER PLAN BOD EL PER PLAN 116' - 2 1/2" 6" CFS STUDS @ 16" OC, TYP 5 1/2" H.1 GALV L2X2X1/4 CONT 1/4 2-12 1/4 1/4 1/4 1/4 EJ 8" SLAB ED PER S-506 1" MIN VERT SLIP CONN PER CFS DESIGNER
