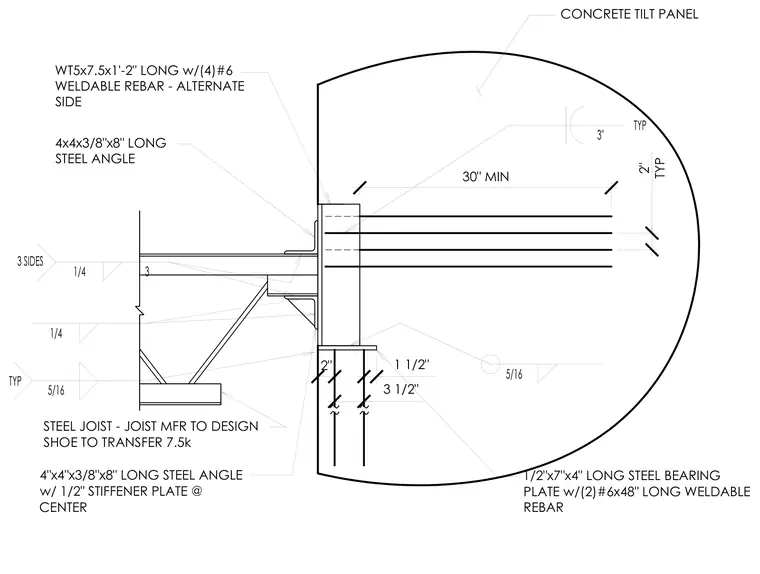

A steel joist bears against a concrete tilt-up wall panel using an embedded WT5x7.5 structural tee with four number six weldable rebar anchors placed on alternate sides. An underlying four-by-four-by-three-eighths-inch steel angle, eight inches long with a one-half-inch stiffener plate at the center, provides additional support beneath the joist shoe. A separate one-half-inch by seven-inch by four-inch long steel bearing plate with two number six by forty-eight-inch long weldable rebar anchors is embedded at the base of the connection. The joist manufacturer designs the shoe to transfer a seven and a half kip load, welded with quarter-inch and five-sixteenth-inch fillet welds on three sides as detailed.
CONCRETE TILT PANEL TYP 3" 30" MIN 5/16 2" 3 1/2" 1 1/2" 1/2"x7"x4" LONG STEEL BEARING PLATE w/(2)#6x48" LONG WELDABLE REBAR WT5x7.5x1'-2" LONG w/(4)#6 WELDABLE REBAR - ALTERNATE SIDE 4x4x3/8"x8" LONG STEEL ANGLE 4"x4"x3/8"x8" LONG STEEL ANGLE w/ 1/2" STIFFENER PLATE @ CENTER STEEL JOIST - JOIST MFR TO DESIGN SHOE TO TRANSFER 7.5k 1/4 5/16 TYP 1/4 3 3 SIDES 2" TYP
