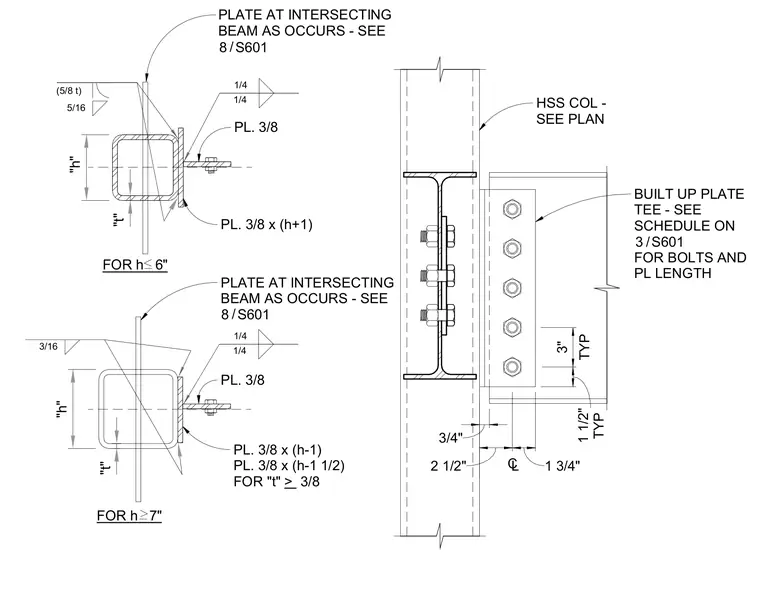

This structural steel connection details an intersecting beam framing into a hollow structural section column using a built-up plate tee. A three-eighths inch plate welded to the column face connects to the beam web with five bolts spaced at three inches typical. Additional three-eighths inch vertical plates attach to the intersecting beam as it passes across the hollow structural section column. Fillet welds of quarter-inch and five-sixteenths inch sizes secure the plate assemblies to the structural steel column.
CL BUILT UP PLATE TEE - SEE SCHEDULE ON FOR BOLTS AND PL LENGTH PLATE AT INTERSECTING BEAM AS OCCURS - SEE PLATE AT INTERSECTING BEAM AS OCCURS - SEE HSS COL - SEE PLAN FOR h 6" FOR h 7" "h" "t" "t" "h" PL. 3/8 x (h-1) PL. 3/8 x (h-1 1/2) FOR "t" > 3/8 PL. 3/8 PL. 3/8 PL. 3/8 x (h+1) 3/16 1/4 1/4 1/4 1/4 5/16 (5/8 t) 3/4" / 3 S601 2 1/2" 1 3/4" / 8 S601 / 8 S601 TYP 1 1/2" TYP 3"
